TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR

TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR
TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR

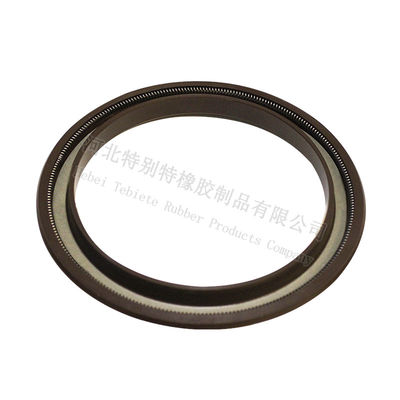

Large Image :  TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR

Product Details:
Place of Origin: China
Brand Name: TE BIE TE/ customized
Certification: IATF 16949: 2016 , ISO 9001:2008
Model Number: 125x160x13mm 125*160*13mm
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Delivery Time: 30 days
Payment Terms: T/T

TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR

Description
Material: Rubber ,NBR , OR Depend On Requirment OEM: ACCEPT ,manufacturer
Size: 125x160x13mm , Develop Depends On Your Sample Feature: Oil Resistance, Corrosion Proof, Sealing Performance, Factory And Home, Heat-Resisitant
Sample: Available, Freight Collect, Provide Free Samples, Within 5 Days, Free Color: Black, Brown, Blue, Purple, Depends On Requirment
High Light:

125x160x13mm Rear Wheel Oil Seal

,

TC Rear Wheel Oil Seal

,

Fuwa Axle tc oil seal

Product Name:

TC 125x160x13mm Rear Wheel Oil Seal for Fuwa Axle NBR



Technical Data:





Brand

Tebiete Type

TC

Material NBR
Model 125x160x13mm Installation position Wheel Hub Apply to Fuwa Axle
Hardress shore A 70-80 Temperature resistance -40℃-300℃ Standard non-standard
ID 125mm OD 160mm Height 13mm



Oil seal type:
TC, TB, SC, SB, TB5SY, VC, VB,VK ,TA, SA ,SAY,SCNY2,SCOT,SCOTPLUS
TCV, TCN, TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3,
TC4, TB4, DC, DB,DCY, HSCL,HTC ,HTC9L,HTGL,KC, VR, MG, CNB, SCJY, SCY, VK

Type Code No Feature Use
Common single lip B It is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion. Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s.
Normal double lips

FB



In addition to the use characteristics of the S type oil seal, it can also be dustproof.

Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05



In the case of MPA, the linear velocity is less than 15m/s.

No spring type BV Spring-less single lip type inner-wrapped skeleton rubber oil seal. Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s.
Outer skeleton unillipped W Single lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity. Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s.
Exoskeleton bilabial FW The double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality.

Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05



MPA occasions. The speed of 15 m/s or less.

7/5000

Assembled single lip

Z The outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load. Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
Assembled double lip FZ The assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load. Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
Unidirectional reflux type

Right-handed SR,



Left-handed DL

The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained. It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s.
Compression type NY Lips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa. Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s.



How to order?
1. Tell me the size of the product you want to order (inner diameter, outer diameter, height) and material, or you can give me           the drawings directly.
2. We will communicate to you at the most reasonable price the first time we receive it.
3. If samples are needed, we can provide samples for free, but you need to pay the shipping cost of the sample (if the order is      sold, we can reduce the shipping cost you paid)
4. Arrange production, arrange delivery



 TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR 0

TC 125x160x13mm Rear Wheel Oil Seal For Fuwa Axle NBR 1

Installation method:

1. The installation of the oil seal can be flush with the front end of the casing aperture, or it can be close to the low section of          the casing aperture.

2. The reference planes for installation and positioning should be machined surfaces, and the unprocessed reference planes          cannot be used.

3. The outer diameter of the oil seal should be coated with a layer of lubricant.

4, using hydraulic or pneumatic uniform pressure compression oil seal.

Note:

The matching surface of the oil package is flush with the reference surface of the housing to ensure the verticality of the shaft and the center of the shaft after the shaft is installed, so that the oil seal lip becomes a line contact belt on the shaft surface to achieve a good sealing effect.
