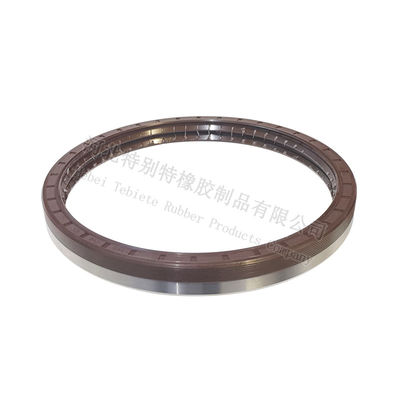

Product Details:
|
| Features: | Wear-resistant | Material: | NBR |
|---|---|---|---|
| Color: | Brown | Hardness: | 30-90 Shore |
| Sample: | Available,Freight Collect | Suitable Truck: | Shacman Truck |
| OEM: | DZ90129340063 | Structure: | Half Rubber Double Spirngs |
| High Light: | DZ90129340063 Rotary Shaft Seal,Delong Rotary Shaft Seal,OEM DZ90129340063 |
||
Materials: NBR (Nitrile), FKM, HNBR, low temperature and low-friction material grades.
|
Brand |
TBT |
Type |
Half Rubber |
Material |
NBR |
|
The mechanical |
Seal of the action |
Installation position |
Crankshaft |
Size |
185x210x22 |
|
Color |
Brown or Customized |
Applicable |
Wheel Hub |
Goods are standard |
Standard |
|
The characteristics |
Wear resistance, high pressure Oil resistance |
Hardness |
±75 shore |
Port of loading |
Tianjin/ Qingdao/Ningbo/Shanghai |
|
Certification |
IATF16949:2016 ISO9001:2008 SGS testing report |
Package |
bag+box |
Delivery time |
Depends on quantity |
| Type | Code No | Feature | Use | |
| Common single lip | B | It is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s. | |
| Normal double lips |
FB
|
In addition to the use characteristics of the S type oil seal, it can also be dustproof. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
In the case of MPA, the linear velocity is less than 15m/s. |
|
| No spring type | BV | Spring-less single lip type inner-wrapped skeleton rubber oil seal. | Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s. | |
| Outer skeleton unillipped | W | Single lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s. | |
| Exoskeleton bilabial | FW | The double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
MPA occasions. The speed of 15 m/s or less. |
|
| Assembled single lip | Z | The outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load. | Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. | |
| Assembled double lip | FZ | The assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load. | Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. | |
| Unidirectional reflux type |
Right-handed SR,
Left-handed DL |
The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained. | It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s. | |
| Compression type | NY | Lips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa. | Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s. | |
The representative form of oil seal is TC oil seal, which is a double-lip oil seal with self-tightening spring completely covered by rubber. Generally speaking, the oil seal often refers to the TC skeleton oil seal.
Temperature: -58 to 400°F (-50 to 240°C) depending on seal material
Shaft Surface Speed: Up to 7,000 fpm (35m/s)* depending on shaft diameter and seal material
Parameters of REINFORCED SHAFT SEALS:
FAQ:
Q1. What is the payment term?
A: We accept a T/T 30% deposit and a 70% balance of a current bill of lading or a letter of credit.
Q2. What is the normal delivery time for product orders?
A: The average delivery time of the sample is 1-2 weeks. If the mold production is involved, the delivery cycle of the production mold is 10 days, and the average production time after the sample is approved is 1-2 weeks.
Q3. What is your standard packaging?
A: All goods will be packed in plastic bags and then packed in cartons and
filled with trays. Special packaging methods are accepted when needed, but charges may apply.
Q4. Which certificate do you have?
A1: we have passed IATF16949:2016 ISO9001:2007 certification and SGS quality testing.
Q5: How to check the quality of bulk orders?
A1: Our inspection procedures include, first inspection/patrol inspection/initial inspection/full inspection/shipment inspection.
A2: We provide quality certification to all customers before delivery, such as measurement reports, material data sheets, etc.
A3: We accept third party inspections
Q6: How do I choose a raw compound for my application?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs, keeping in mind the cost of materials.
Q7: Can you provide materials of different colors?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors. Color codes are required when ordering.
Q8: From which side can you produce which materials?
A: NBR, EPDM, silicone, FKM, NEOPRENE (CR), NR, IIR, SBR, ACM, AEM, fluorosilicon (FVMQ), FFKM, liquid silica gel, and the like.
