Product Details:
|
| Name: | 6pk1903 Belt | Standard Or Nonstandard: | Standard & Custom |
|---|---|---|---|
| Material: | EPDM,high Epdm | Color: | Black |
| Feature: | Pliability Cracking Wear Resisting Long Service Life | Medium: | Water And Dust |
| Package: | Inner Pack Is PE Bag And Out Packaging Is Carton Box | Application: | Truck Car |
| Processing Service:: | Moulding, Cutting | ||
| High Light: | 6pk1903 Multi Wedge Belt,Automotive PK Multi Wedge Belt,6pk1903 V Ribbed Belt |
||

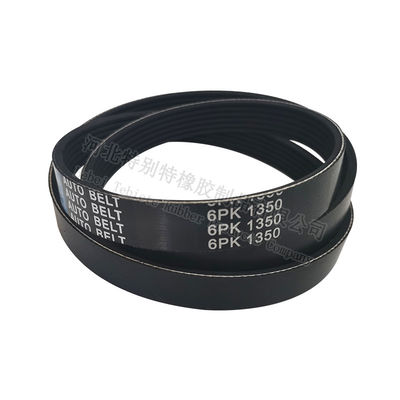

6pk1903 belt Automotive PK belt V ribbed belt for auto engine
Brief Description of V ribbed belt for auto engine :
The V ribbed belt for auto engine is also called the composite V-belt. It is a new type of transmission belt. It is an endless belt with a number of longitudinal triangular wedges attached to the flat belt base. The wedge-shaped surface is the working surface. It has been widely used, and is especially suitable for transmissions that require a large number of V-belts or that the wheel axis is perpendicular to the ground.
Parameters of V ribbed belt for auto engine :
|
Part Name |
V ribbed belt for auto engine |
|
Part Number |
6pk1903 |
|
Brand |
TBT/ OEM |
|
Truck Model |
Delong M3000 |
|
Packing |
Original / Neutral / Customized |
|
Warranty |
12 Months |
|
MOQ |
100 Piece |
|
Payment Term |
T/T, Western Union, Paypal, L/C, etc. |
|
Delivery way |
DHL/FEDEX/UPS/TNT,By Air, By Sea |
|
FOB Port |
Qingdao Tianjin etc. |
Tensile strength performance:
Car thanks for taking GB13552-2008 gb requirements1.
A, Multi-wedge belt GB13552-2008 National Standard Requirements:
| PK |
tensile strength KN |
Refer to elongation % |
Refer to the force KN |
| 3 | ≥2.40 |
National Standard≤3.0
|
0.75 |
| 4 | ≥3.20 | 1.00 | |
| 5 | ≥4.00 | 1.25 | |
| 6 | ≥4.8 | 1.50 | |
| 7 | ≥5.6 | 1.75 | |
| 8 | ≥6.4 | 2.00 | |
| More than 8PK | ≥0.8*n | 0.25*n |
B,Multi wedge belt tensile performance index
| PK | tensile strength KN |
Refer to elongation % |
Refer to the force KN |
| 3 | ≥3.60 |
National Standard≤2.4
|
0.75 |
| 4 | ≥4.80 | 1.00 | |
| 5 | ≥6.00 | 1.25 | |
| 6 | ≥7.20 | 1.50 | |
| 7 | ≥8.40 | 1.75 | |
| 8 | ≥9.60 | 2.00 | |
| More than 8PK | ≥1.2*n | 0.25*n |
High and low temperature performance:
High and low temperature test (100℃ continuous 70h, low temperature -30℃70h) and many AND no cracks on the band.
Limit deviation of effective length, the effective length of Tegerdo wedge belt meets the requirements in the following table:
| The nominal value of the effective length Le | Center distance limit deviation |
| Le≤ 1000 | ±5.0 |
| 1000＜Le≤ 1200 | ±6.0 |
| 1200＜Le≤ 1500 | ±8.0 |
| 1500＜Le≤ 2000 | ±9.0 |
| 2000＜Le≤ 2500 | ±10.0 |
| 2500＜Le≤ 3000 | ±11.0 |
V ribbed belt for auto engine FEATURES & BENEFITS
-- Smooth running
-- More power in less space
-- Friction and wedge advantages for v ribbed section
V ribbed belt for auto engine APPLICATIONS
-- Excellent flexibility
-- High power transmission efficiency
-- Reduced noise
-- a power transmission belt featuring multiple longitudinal ribs.
-- It transmits the torque by contact of the belt rib flanks and the pulley grooves.
-- It has been designed with a larger contact surface area than V belts or flat belts.
