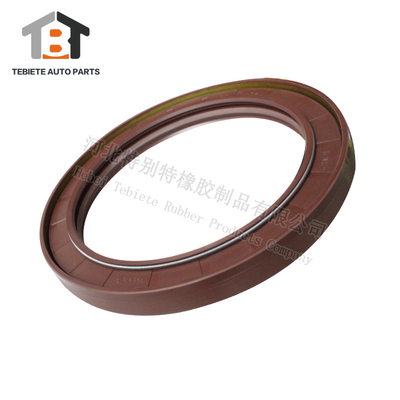

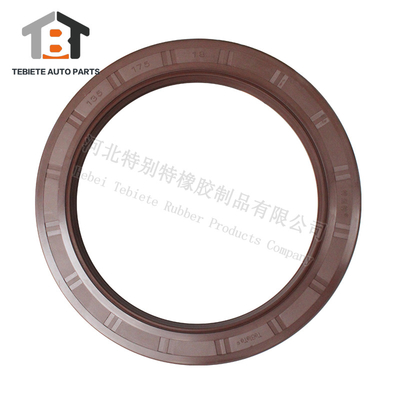

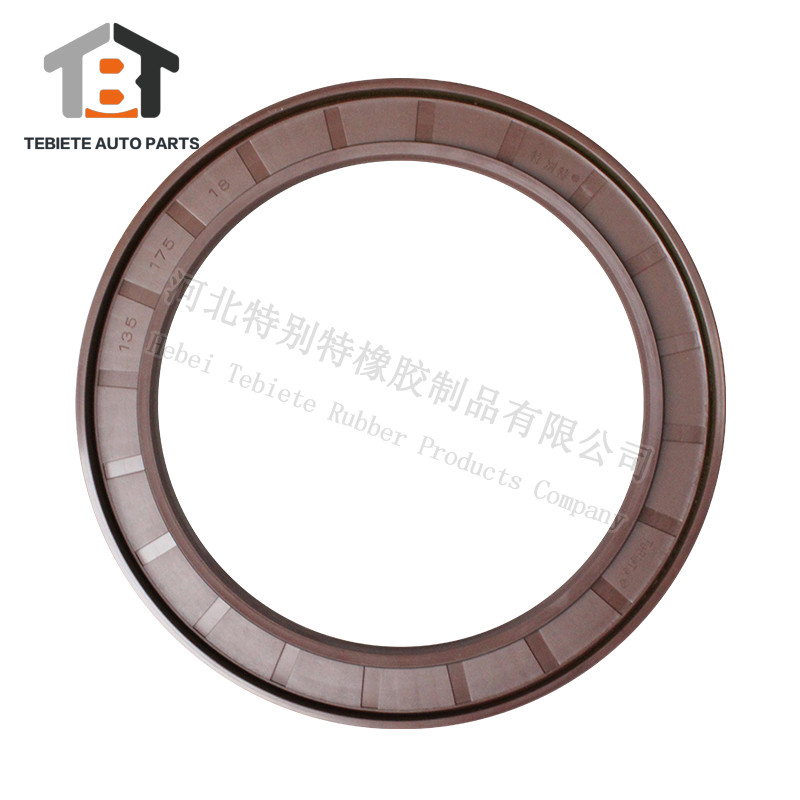

Product Details:
|
| Name: | Rear Wheel Oil Seal For Truck | Material: | FKM FPM VITON |
|---|---|---|---|
| Color: | Brown Or Black | Size: | 135x175x18 |
| Standard Or Nonstandard: | Custom/Standard | Style: | Rubber Oil Seal |
| Package: | Plastic Bag+carton | ||
| High Light: | Oman Rear Oil Seal,135*175*18 Truck Oil Seal |
||
| Product Name | Rear Wheel Oil Seal |
| Truck Model | Aowei/Oman |
| Size | 135x175x18mm |
| OEM | / |
| Materials | NBR |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Certification |
IATF16949:2016 ISO 9001:2008 SGS Quality Testing |
| Hardness | 70-90 shores A |
| Color | Red,Black,White, blue, green,Clear,etc |
| Sample Time |
If in stock, within 3 days after payment If have mold but no stock ,around 10-20days (Depends on order quantity) If need make new mold , aroud 20-40days (Depends on order quantity) |
| Delivery Time |
3-10days by shipping after final payment |
| Shipping | By Ships |
| Customized | OEM & ODM are welcomed |
| Packing | Plastic bag&carton box or according to your requirements |
| Certification | IATF 16949: 2016 |
| Species |
Oil resistance |
Weather resistance |
Wear resistance |
The lowest Temperature |
The highest Temperature |
Features |
| FKM | optimal | optimal | optimal | -40 | 250 | It has excellent heat resistance, oil resistance and chemical resistance, and is the best balanced rubber for oil seal. |
| VMQ | good | optimal | good | -60 | 225 | It has excellent heat resistance, cold resistance and weather resistance. |
| ACM | optimal | optimal | optimal | -35 | 150 | The heat resistance is better than nitrile butadiene rubber, it has excellent oil resistance to internal combustion engine, gear oil, torque converter oil, etc. |
| AEM | good | optimal | optimal | -40 | 175 | It has good oil resistance and heat resistance, better than acrylic gum, slightly worse than silica gel, but good weather resistance. |
| HNBR | optimal | good | optimal | -40 | 150 | Heat resistance, oil resistance, better weather resistance than nitrile butadiene rubber. |
| NBR | optimal | good | optimal | -40 | 125 | Mineral oil, good wear resistance, widely used in oil seals. |
| EPDM | poor | optimal | good | -40 | 125 | Good water resistance, polar solvent resistance, inorganic drug resistance and weather resistance, but poor oil resistance. |
| PTFE | optimal | optimal | optimal | -65 | 260 | Oil seal material with the best heat resistance, water resistance, chemical resistance, weather resistance and low friction coefficient. |
