Product Details:
|
| Material: | NBR/FKM | Color: | Brown /Customize |
|---|---|---|---|
| Hardness: | 30-90 Shore | Package: | Plastic Bag+catton |
| Application: | Truck/Machine/Trailer | Size: | 125*148*9.7 & 125*148.3/156*8.1/9.3 |
| Feature: | Half Rubber Half Iron | Product Name: | Truck Oil Seal |
| High Light: | OEM 3095043 Rear Wheel Oil Seal,125*148*9.7 Rear Wheel Oil Seal,Rear Wheel Oil Seal For VOLVO |
||

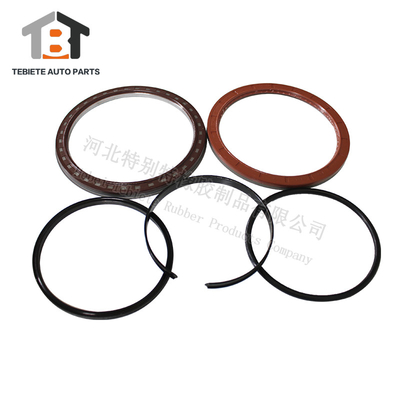

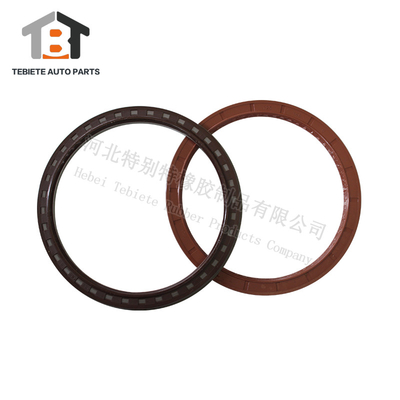

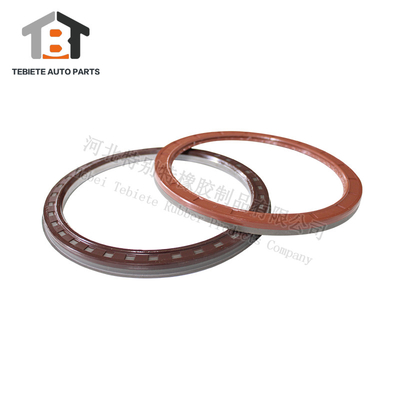

Product Name: Truck Oil Seal OEM Quality Reapair Kits For VOLVO
Product Feature:
| Product Name | wheel oil seal |
| Size | 125*148*9.7 & 125*148.3/156*8.1/9.3 |
| Materials | NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Certification | ISO 9001:2008 |
| Hardness | 30-90 shores A |
| Color | Red,Black,White, blue, green,Clear,etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample Time | If in stock, within 3 days after payment |
| Delivery Time |
10-20 days by shipping after final payment |
| Shipping | By Ships |
| Customized | OEM & ODM are welcomed |
| Packing | Plastic bag&carton box or according to your requirements |
installation method
(1) Recommended oil seal installation tools and methods
1. The installation of the oil seal can be flush with the front end of the casing aperture, or it can be close to the low section of the casing aperture.
2. The reference planes for installation and positioning should be machined surfaces, and the unprocessed reference planes cannot be used.
3. The outer diameter of the oil seal should be coated with a layer of lubricant.
4, using hydraulic or pneumatic uniform pressure compression oil seal.
Note: The matching surface of the oil package is flush with the reference surface of the housing to ensure the verticality of the shaft and the
center of the shaft after the shaft is installed, so that the oil seal lip becomes a line contact belt on the shaft surface to achieve a good sealing
effect.
(2) Installation without oil seal
1.Apply a layer of suitable lubricant when the outer diameter of the oil seal is assembled
2. Tap the oil seal firmly and evenly.
3. Check that the oil package is flush with the reference surface of the casing after it is inserted.
Check that the oil seal spring must not come off.
