Product Details:
|
Name: | Truck Oil Seal | Model: | FREIGHTLINER Trailer |
---|---|---|---|
Parts No: | 21200321A | Applicaferential Shaft Oil Sealtion: | Wheel Hub Oil Seal |
SIZE: | ID:117.5mm OD:152.4mm H:25.5mm | Color: | Brown Or As Your Inquire |
Hardness: | 70-90 Shore A | Material: | Top Grade NBR |
High Light: | NBR Trailer Wheel Hub Oil Seal,Trailer Oil Seal 21200321A,117x152x25.5 Trailer Oil Seal |
Truck Oil Seal Name:

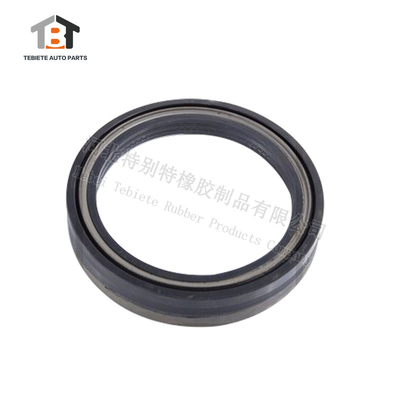

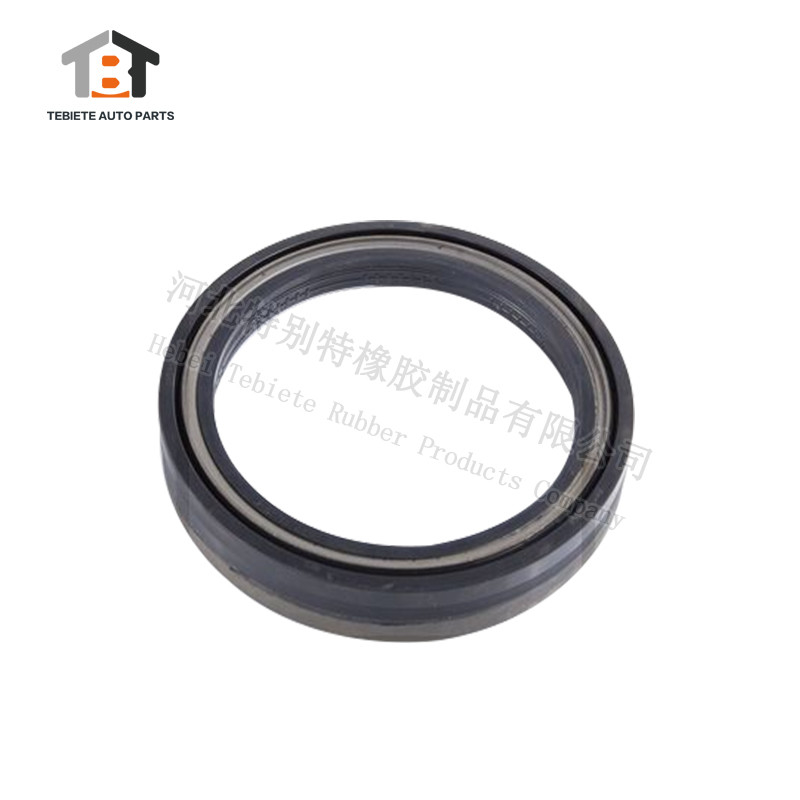

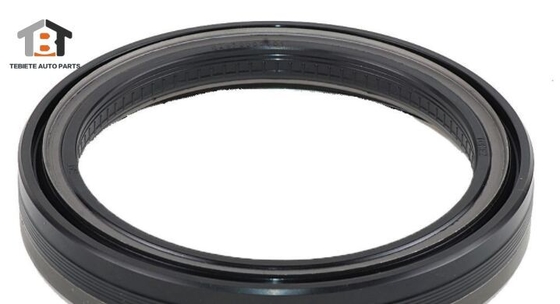

FREIGHTLINER Trailer Wheel Hub Oil Seal 117x152x25.
Truck Oil Seal OE No.21200321A
Truck Oil Seal Description:
Product name: | Truck Oil Seal |
Truck Model | FREIGHTLINER Trailer |
Color: | Brown As Your Request |
Place for | Wheel Hub Oil Seal |
Brand Name: | TBT or Customize for you |
Place of Origin: | Hebei , China |
Type: | Inner Rotary |
Size: |
117.5*152.4*25.5 |
Parts No | 21200321A |
Material: | NBR or Customized |
Medium: | Oil, Water and Dust |
Hardness: | Shore A 65-90 |
Certification |
IATF16949:2016 ISO9001:2008 SGS Quality Testing |
Truck Oil Seal Type:
Different Type of Oil Seals | ||||
Type | Material | Lip | Spring | Feature |
TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
TB | NBR | Double Lips | Single | Metal Case |
TA | NBR | Double Lips | Single | Metal Case |
sc | NBR & FKM | Single | Single | Double Metal Shell |
SB | NBR | Single | Single | Metal Case |
SA | NBR | Single | Single | Double Metal Shell |
Dc | NBR | Double Lips | Double | Double Springs |
vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
VB | NBR | Single | Without | Metal Case |
Tcv | NBR | Double Lips | Single | High Pressure |
TCN | NBR | Double Lips | Single | High Pressure |
PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
HTCR | NBR & FKM | Double Lips | single | lnside thread R |
Rubber Material of Truck Oil Seal :
Species |
Oil resistance |
Weather resistance |
Wear resistance |
The lowest Temperature |
The highest Temperature |
Features |
FKM | optimal | optimal | optimal | -40 | 250 | It has excellent heat resistance, oil resistance and chemical resistance, and is the best balanced rubber for oil seal. |
VMQ | good | optimal | good | -60 | 225 | It has excellent heat resistance, cold resistance and weather resistance. |
ACM | optimal | optimal | optimal | -35 | 150 | The heat resistance is better than nitrile butadiene rubber, it has excellent oil resistance to internal combustion engine, gear oil, torque converter oil, etc. |
AEM | good | optimal | optimal | -40 | 175 | It has good oil resistance and heat resistance, better than acrylic gum, slightly worse than silica gel, but good weather resistance. |
HNBR | optimal | good | optimal | -40 | 150 | Heat resistance, oil resistance, better weather resistance than nitrile butadiene rubber. |
NBR | optimal | good | optimal | -40 | 125 | Mineral oil, good wear resistance, widely used in oil seals. |
EPDM | poor | optimal | good | -40 | 125 | Good water resistance, polar solvent resistance, inorganic drug resistance and weather resistance, but poor oil resistance. |
PTFE | optimal | optimal | optimal | -65 | 260 | Oil seal material with the best heat resistance, water resistance, chemical resistance, weather resistance and low friction coefficient. |
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How about your delivery time?
A5: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Contact Person: Amy
Tel: +8615093381749
