Product Details:
|
| Material: | CR , NB | Type: | Ribbed Belt, V-belt, Flat Belt, Machine Belt, ZA/ZBS/S8M/MY/MR/RU/YU/S3M/T/HTD/STD |
|---|---|---|---|
| Color: | Black, Black Or Customized, Black/Red/Yellow/Can Be Customized, Customizable, Black Classical Exercise Bike Drive Belt | Length: | Customer's Option, 1287mm , 550-2300mm, |
| Warranty: | At Least 50000 KM | Size: | Standard Size, OEM & ODM Service, Customized |
| High Light: | v ribbed belt,ribbed drive belts |
||

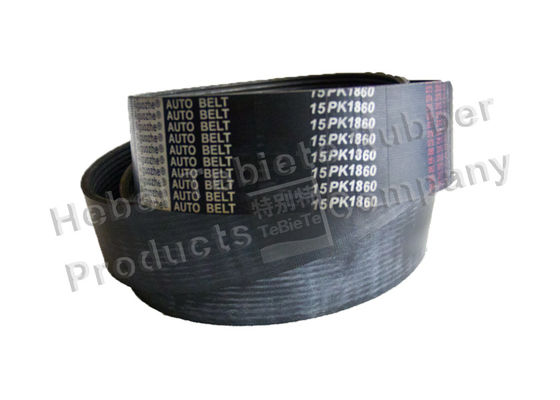

Product Name: 15PK Series: 15PK1287 15PK1860 Multi Wedge Belt , Ribbed Belt
Material: CR , NB , EPDM
Notes for installation of multi-wedge belt:
1. In the installation of multi-wedge belt, should be adjusted in the multi-wedge belt pulley shaft spacing is to pay attention to do not use sharp objects forced hanging, so that the multi-wedge belt caused damage；
2. The wheel groove with multi-wedge wheels shall be kept clean at any time to prevent oil, dust or chemical adhesion；
3. The multi-wedge belt transmission system must pay attention to the multi-wedge belt wheel between the two shafts to maintain parallel, the wheel groove needs to agree on the line, the multi-wedge belt and shaft need to be a right Angle state, to prevent the multi-wedge belt bias wear, so as to shorten the life of the multi-wedge belt；
4. The right choice of the appropriate multi-wedge belt and multi-wedge belt wheel to drive, otherwise it may make the multi-wedge belt all fall into the multi-wedge wheel so that the multi-wedge belt all wear；
5. It is necessary to determine the initial tension of the multi-wedge belt, the tension is too loose or too tight will cause many wedge belt damage；
Product Details:
(1) Material: CR /NB
(2) We can guarantee this quality can be used at least 50000 Kilometers,
(3) Easy to install,
(4) The length can be customized according to your samples,
(5) It can be customized your own brand and LOGO and the mould is free,
Multi-wedge belt selection method:
(1) Choose the type of multi-wedge belt according to the type of product and the applicable range of multi-wedge belt.
According to the structural characteristics of the transmission, the required length of the large and small multi-wedge belt pulley and the large and small multi-wedge belt are determined.
(2) The number of wedges needed for multi-wedges can be calculated according to several rated power, rated speed, correction coefficient of package Angle and correction coefficient of length.
(3) It is also possible to determine the initial tension required for the multi-wedge belt installation according to the tension during operation.
(4) Can also be based on the multi-wedge belt transmission when the rated power to determine whether the need to increase the pressure wheel.
