Product Details:
|
| Size: | 5pk1071 | Model: | Renault Motor Belt |
|---|---|---|---|
| Material: | EPDM | Type: | Ribbed Belt/ Multi Wedge Belt/pk Belt |
| Oem: | D5010224370 | Feature: | Anti-heat, Anti-oil, Non-slipping, High Transmission Efficiency, High Flexibility |
| Brand: | TBT Or Customized Logo | Guarantee: | 200000-300000KM |
| High Light: | v ribbed belt,automotive v belts |
||
Product Name:

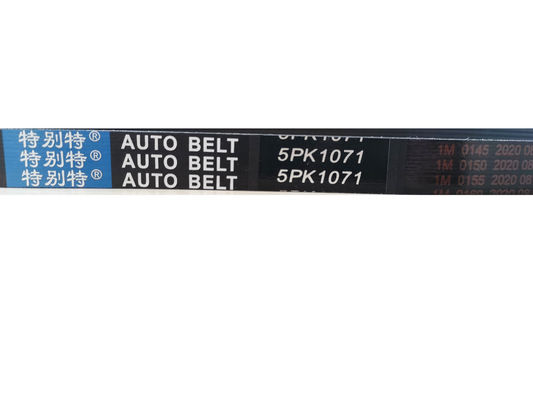

5pk1071 Multi Wedge Belt Fit for Renault Motor,EPDM Ribbed V belt
OEM:D5010224370
Product Details:
|
Product Name |
Multi Wedge Belt /Rib Belt |
|
Size |
5pk1071 |
|
OEM |
D5010224370 |
|
Truck Model |
Renault Motor Belt |
|
Material |
Top EPDM |
|
Warranty |
200000-30000KM |
|
Specification:
|
Based on Customer |
|
Payment |
T/T,L/C ,Western Union |
|
OEM |
Accept and molf free |
Type and Size of V Ribbed Belt/Poly V Belt"
|
Type |
Rib Section |
Angle of Rib |
Belt Width |
Belt Thickness |
Rib Number |
Length Range |
|
3PK |
3.56 |
40 |
10 |
4.8 |
3 |
500-5000mm |
|
4PK |
3.56 |
40 |
13.6 |
4.8 |
4 |
500-5000mm |
|
5PK |
3.56 |
40 |
17 |
4.8 |
5 |
500-5000mm |
|
6PK |
3.56 |
40 |
20.7 |
4.8 |
6 |
500-5000mm |
|
7PK |
3.56 |
40 |
24.3 |
4.8 |
7 |
500-5000mm |
|
8PK |
3.56 |
40 |
27.8 |
4.8 |
8 |
500-5000mm |
|
9PK |
3.56 |
40 |
31.4 |
4.8 |
9 |
500-5000mm |
|
10PK |
3.56 |
40 |
35 |
4.8 |
10 |
500-5000mm |
|
12PK |
3.56 |
40 |
42.5 |
4.8 |
12 |
500-5000mm |
|
15PK |
3.56 |
40 |
53 |
4.8 |
15 |
500-5000mm |
|
No. |
Name |
Function |
Material |
|
1 |
Top Fabric |
Protect the Lining Tensile Ply |
Polyester Cotton Canvas |
|
2 |
Buffer Rubber |
Support and Protect the Adhesive Force of the Tensile Ply |
EPDM |
|
3 |
Tensile Fabric |
the Critical Material to Pass the Dynamic Force |
Polyester |
|
4 |
Bottom Rubber |
Maintain the Shape of the Rubberand Improve its Side Compression Performance |
EPDM |
Product Details:
(1) Material: EPDM
(2) We can guarantee this quality can be used at least 50,000 Kilometers,
(3) Easy to install,
(4) The length can be customized according to your samples,
(5) It can be customized your own brand and LOGO and the mould is free,
Notes for installation of multi-wedge belt:
1. In the installation of multi-wedge belt, should be adjusted in the multi-wedge belt pulley shaft spacing is to pay attention to do not use sharp objects forced hanging, so that the multi-wedge belt caused damage；
2. The wheel groove with multi-wedge wheels shall be kept clean at any time to prevent oil, dust or chemical adhesion；
3. The multi-wedge belt transmission system must pay attention to the multi-wedge belt wheel between the two shafts to maintain parallel, the wheel groove needs to agree on the line, the multi-wedge belt and shaft need to be a right Angle state, to prevent the multi-wedge belt bias wear, so as to shorten the life of the multi-wedge belt；
4. The right choice of the appropriate multi-wedge belt and multi-wedge belt wheel to drive, otherwise it may make the multi-wedge belt all fall into the multi-wedge wheel so that the multi-wedge belt all wear；
5. It is necessary to determine the initial tension of the multi-wedge belt, the tension is too loose or too tight will cause many wedge belt damage；
