|Brand:||Tebiete,customized,your LOGO And Brand||Material:||EPDM, Rubber|
|OEM:||Accept, Acceptable, Welcome OEM, Yes||Guarantee:||More Than 100,000 KM|
|Length:||Inner 1075mm, Outer 1125mm,Customer's Option, 550-3550mm,||Application:||Power Belt, Auto Engine, Truck, Automobile, Power Transmission|
raw edge cogged belt,
adjustable fan belt

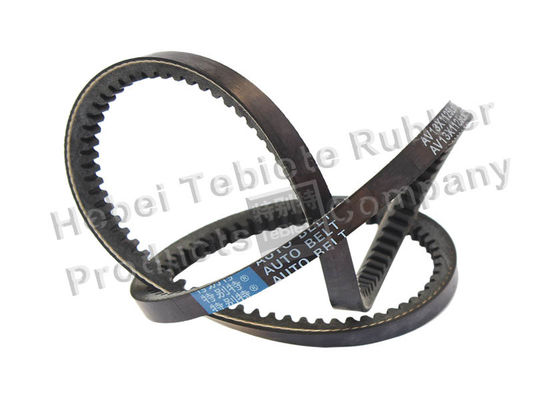

Product Name:AV13*1125La(13*1075Li)Automotive V-Belt , AV13*1125La(13*1075Li)Toothed Belt.
1. Tebiete V-belts are covered for extreme abrasion and wear resistance.
2. For extended protection from oil, dirt and heat, each banded V-belt is highly resistant to tensile and flexing forces, fatigue and shock loads.
1. Production :
We can produce by the size and pics.
If you want the customized products, send the samples to us.
The price is FOB price and it would by ship.
We can provide samples but the delivery fee is paid by the customer.
(1) EPDM: Density (1,200-1,350) KG/M3. Excellent aging resistance, good chemical resistance, good impact elasticity. In 100 PPHM medium containing ozone, 2430 hours without cracking;
(2) Low Density and High Packing: EPDM is a kind of rubber with low density, and its density is 0. 8 July. In addition, it can be filled with a large amount of oil and filler, thus reducing the cost of rubber products, making up for the high price of epdm raw rubber, and for epdm with high Mooney value, the reduction of physical and mechanical properties after high filling is not large;
(3) Aging Resistance: EPDM has excellent weather resistance, ozone resistance, heat resistance, acid and alkali resistance, water vapor resistance, color stability, electrical performance, oil filling and room temperature fluidity. EPDM products under 120 ℃ can be use for a long time, in 150 ~ 200 ℃ can be used briefly or intermittently. Adding suitable anti - aging agent can increase its service temperature. Epdm crosslinked with peroxide can be used under more stringent conditions;
Epdm at ozone concentration 50X10 ~, stretch 30%, can reach more than 150 hours without cracking.
(4) Corrosion Resistance: due to the lack of polarity of ethylene and propylene rubber, low degree of unsaturation, so all kinds of polar chemicals such as alcohol, acid, alkali, oxidant, refrigerant, detergent, animal and vegetable oil, ketone and fat have good resistance; However, it is less stable in aliphatic and aromatic solvents such as gasoline, benzene and mineral oils;
The performance will also decrease under the long-term action of concentrated acid. ISO/TR7620 compiles data on the effects of nearly 400 corrosive gaseous and liquid chemicals on various rubber properties. There are more than 80 kinds of grade 1 chemicals of ethylene - propylene rubber (epdm);
(5) Water Vapor Resistance: Ethylene Propylene rubber has excellent water vapor resistance and better than its heat resistance.
In the 230 ℃ heating steam, nearly 100 hours after no change in appearance. Under the same conditions, fluorine rubber, silicone rubber, fluorine silicone rubber, butyl rubber, nitrile butadiene rubber and natural rubber experienced obvious deterioration in appearance after a short time;
Contact Person: Amy
Type: V-belt, flat belt, machine belt,Tooth Belt, Cog Belt
OEM: Accept, Acceptable, Welcome OEM
Feature: Anti-heat, Anti-oil, Non-slipping, High transmission efficiency, High Flexibility
Color: Black, Black or Customized, Black/Red/Yellow/Can Be Customized, Customizable, black classical exercise bike drive belt
