Product Details:
|
| Size: | 8pk1062 | Type: | Ribbed Belt, V-belt, Flat Belt, Machine Belt, ZA/ZBS/S8M/MY/MR/RU/YU/S3M/T/HTD/STD |
|---|---|---|---|
| Material: | EPDM | Truck Model: | SINO Truck HOWO |
| Certification: | IATF 16949: 2016 , ISO 9001:2008 | Warranty: | 250000-300000 KM |
| OEM: | 612600020251 | Brand: | TBT , Aiguozhe Or Customer;s Logo |
| High Light: | v ribbed belt,automotive v belts |
||
Product Name:
8pk1062 EPDM Fan Belt for SINO HOWO Truck ,High EPDM Quality Cogged V Belt
OEM: 612600020251
Product Details:
|
Product Name |
Multi Wedge Belt /Rib Belt |
|
Size |
8pk1062 |
|
Truck Model |
SINO Truck HOWO |
| OEM | 612600020251 |
|
Material |
Top EPDM |
|
Warranty |
250000-30000KM |
|
Specification: |
Based on Customer |
|
Payment |
T/T,L/C ,Western Union |
|
OEM |
Accept and molf free |
Type and Size of V Ribbed Belt/Poly V Belt
|
Type |
Rib Section |
Angle of Rib |
Belt Width |
Belt Thickness |
Rib Number |
Length Range |
|
3PK |
3.56 |
40 |
10 |
4.8 |
3 |
500-5000mm |
|
4PK |
3.56 |
40 |
13.6 |
4.8 |
4 |
500-5000mm |
|
5PK |
3.56 |
40 |
17 |
4.8 |
5 |
500-5000mm |
|
6PK |
3.56 |
40 |
20.7 |
4.8 |
6 |
500-5000mm |
|
7PK |
3.56 |
40 |
24.3 |
4.8 |
7 |
500-5000mm |
|
8PK |
3.56 |
40 |
27.8 |
4.8 |
8 |
500-5000mm |
|
9PK |
3.56 |
40 |
31.4 |
4.8 |
9 |
500-5000mm |
|
10PK |
3.56 |
40 |
35 |
4.8 |
10 |
500-5000mm |
|
12PK |
3.56 |
40 |
42.5 |
4.8 |
12 |
500-5000mm |
|
15PK |
3.56 |
40 |
53 |
4.8 |
15 |
500-5000mm |

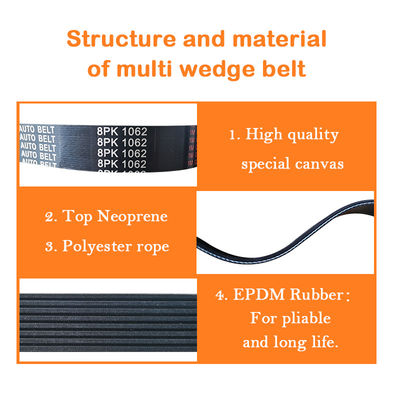

Structure Description:
|
No. |
Name |
Function |
Material |
|
1 |
Top Fabric |
Protect the Lining Tensile Ply |
Polyester Cotton Canvas |
|
2 |
Buffer Rubber |
Support and Protect the Adhesive Force of the Tensile Ply |
EPDM |
|
3 |
Tensile Fabric |
the Critical Material to Pass the Dynamic Force |
Polyester |
|
4 |
Bottom Rubber |
Maintain the Shape of the Rubber and Improve its Side Compression Performance |
EPDM |
FAQ:
Q1. Can I have a sample order?
Yes, any sample order is welcomed to know the quality of our products.
Q2.. How much is the MOQ?
One mould quantity is ok. Usually around 50pcs for small item, 10-20pcs for big item.
Q3. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or
your brand.
Q4. Do you offer the guarantee for your product?
Yes, usually we offer 150000-200000kms warranty for auto belts; for agricultural belt and industril belts, the warranty
will be different according to your quality demand.
