Product Details:
|
| SIZE: | 85x108x9.5mm 85x108x6mm | APPLICATION: | Man 13 |
|---|---|---|---|
| Temperature: | -40℃-+260℃（depends On Material） | Rubber Origin: | TAIWAN Changhong |
| Warrenty: | 1 Year | Material: | NBR |
| High Light: | Maintenance Free Axle Hub Oil Seal,85x108x9.5mm Axle Hub Oil Seal,85x108x6mm Axle Hub Oil Seal |
||
Product Name:

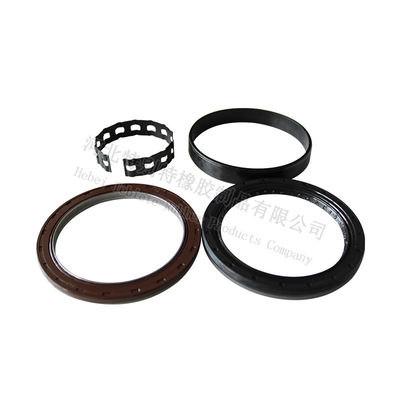

Maintenance free Axle Hub Oil Seal Repair Kits 85x108x9.5mm 85x108x6mm
Oil Seal Stucture:
|
Product Name |
Front Hub Oil Seal |
|
Size |
85x108x9.5mm 85x108x6mm |
|
Truck Model |
Man 13 Maintenance free Axle |
|
Material |
NBR or Depends on inquire |
|
Color |
Brown or Depends on inquire |
|
Temperature Resistant |
-40℃—+260℃ |
|
Quality Certification |
IATF16949:2016 & ISO9001:2008 |
|
MOQ |
1 pcs can be accept if have stock 50pc can be accept if have mold without stock 500-1000pcs if don't have mold |
|
Customized |
OEM & ODM are welcome |
|
Package |
Inner plastic bag + Outer carton box |
Performance of Raw Material:
|
NBR |
Excellent resistant to oil, Low temperature resistant,widely used in industrial area |
|
EPDM |
Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical |
|
NR |
High elasticity, good chemical strength |
|
CR |
Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range |
|
SBR |
Shock resistance,performance well in adhesion and sealing |
|
SILICONE |
Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area |
|
VT/FKM |
Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent |
|
HNBR |
Thermal stability and oxidation resistance |
|
IIR |
Low permeability rate and good electrical properties |
Typical Applications
Primarily for applications with no pressure or very low pressure up to 7psi (0.5bar) spikes*
General purpose seal for oil and grease retention for power transmission, motors, pumps, gear boxes, fans, machine tools and others.
Raw material and equipments:
1. We have unique production technology and advanced production equipment;
2. Efficient and precise pre-forming machines have high production efficiency and high speed, meanwhile greatly reduce the waste of production raw materials, and are more efficient and energy-saving;
3. All oil seal vulcanizing machines use vacuum vulcanizing machines and composite molds, which truly achieve high efficiency, high environmental protection, low loss, low waste, and greatly reduce production costs;
4. Various series of products have quality testing equipment. After the completion of production research and development, fatigue testing experiments will be performed. Product quality is strictly controlled to allow substandard products to flow to the market.
5. Adhesive adopts German Lord's products, the world's first adhesive force, better quality stabilizer.
6. Use Taiwan imported rubber, first-class quality, wear-resistant, durable, high temperature resistance.
7. From raw materials to products, we strictly control every quality control.
