Product Details:
|
| Material: | NBR Or Customized | Type: | Iron Surface |
|---|---|---|---|
| Application: | Industry, Excavator, Pump Hydraulic Machine Rotary Shaft, Bulldozer, Hydraulic Loader | Feature: | Oil Resistance, Corrosion Proof, Sealing Performance, Factory And Home, Heat-Resisitant |
| Temperature: | Resistance To High And Low Temperatures Up To -40℃to +300℃ | Warranty: | 12 Months |
| High Light: | 457 Axle Wheel Hub Oil Seal,NBR Bearing Oil Seal,Anti Corrosion Bearing Oil Seal |
||
Product Name:

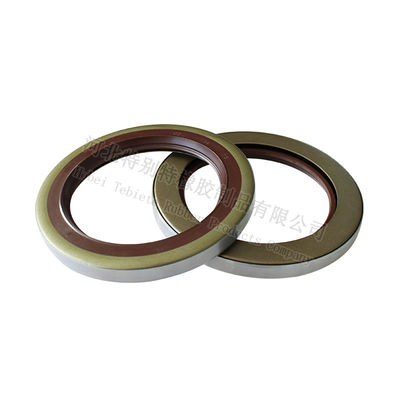

95x134x14.5mm China FAW Truck 457 Axle Front Wheel Hub Oil Seal bearing oil seal
Product Description:
| Brand | TBT or Customized | Type | Iron Surface | Material | NBR |
| The mechanical | Seal of the action | Installation position | Axle | Size | 95x134x14.5 |
| Color | Brown or Customized | Applicable | FAW Truck | Goods are standard | Standard |
| The characteristics |
Wear resistance, high pressure Oil resistance |
Hardness | ±75 shore | Port of loading | Tianjin/ Qingdao/Ningbo/Shanghai |
| Certification | IATF16949:2016 | Package | bag+box | Delivery time | Depends on quantity |
Oil Seal Type:
| Different Type of Oil Seals | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
| Type | Code No | Feature | Use |
| Common single lip | B | It is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s. |
| Normal double lips |
FB
|
In addition to the use characteristics of the S type oil seal, it can also be dustproof. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
In the case of MPA, the linear velocity is less than 15m/s. |
| No spring type | BV | Spring-less single lip type inner-wrapped skeleton rubber oil seal. | Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s. |
| Outer skeleton unillipped | W | Single lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s. |
| Exoskeleton bilabial | FW | The double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
MPA occasions. The speed of 15 m/s or less. |
| Assembled single lip | Z | The outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load. | Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. |
| Assembled double lip | FZ | The assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load. | Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. |
| Unidirectional reflux type |
Right-handed SR,
Left-handed DL |
The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained. | It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s. |
| Compression type | NY | Lips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa. | Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s. |
Some Size Here For Your Reference:
| Type | Size | Type | Size | |
| TC | 05*015*06 | TC | 05*016*06 | |
| TC | 05*017*07 | TC | 05*018*07 | |
| TC | 05*019*07 | TC | 05*022*07 | |
| TC | 06*016*05 | TC | 06*016*07 | |
| TC | 06*017*07 | TC | 06*018*07 | |
| TC | 06*019*07 | TC | 06*020*5.5 | |
| TC | 06*022*07 | TC | 06*025*08 | |
| TC | 06*026*07 | TC | 06*035*07 | |
| TC | 07*016*07 | TC | 07*017*07 | |
| TC | 07*018*07 | TC | 07*019*07 | |
| TC | 07*020*07 | TC | 07*022*06 | |
| TC | 07*022*07 | TC | 07*031*07 | |
| TC | 08*014*05 | TC | 08*015*05 | |
| TC | 08*016*07 | TC | 08*017*07 | |
| TC | 08*018*05 | TC | 08*018*06 | |
| TC | 08*018*07 | TC | 08*019*07 | |
| TC | 08*020*07 | TC | 08*021*06 | |
| TC | 08*022*06 | TC | 08*022*07 | |
| TC | 08*023*05 | TC | 08*023*07 | |
| TC | 08*024*07 | TC | 08*025*07 | |
| TC | 08*025*08 | TC | 08*025*09 | |
| TC | 08*026*07 | TC | 08*028*05 | |
| TC | 08*030*06 | TC | 08*030*07 | |
| TC | 08*034*08 | TC | 09*018*07 | |
| TC | 09*019*05 | TC | 09*019*07 | |
| TC | 09*020*07 | TC | 09*022*07 | |
| TC | 09*024*07 | TC | 09*025*07 | |
| TC | 09*026*07 | TC | 09*029*07 | |
| TC | 09*030*07 | TC | 10*016*04 | |
| TC | 10*016*07 | TC | 10*017*05 | |
| TC | 10*017*07 | TC | 10*018*04 | |
| TC | 10*018*05 | TC | 10*018*06 | |
| TC | 10*018*07 | TC | 10*019*07 | |
| TC | 10*019*10 | TC | 10*020*05 | |
| TC | 10*020*07 | TC | 10*021*04 | |
| TC | 10*021*06 | TC | 10*021*07 | |
| TC | 10*022*05 | TC | 10*022*06 | |
| TC | 10*022*07 | TC | 10*023*07 | |
| TC | 10*023*08 | TC | 10*024*04 | |
| TC | 10*024*06 | TC | 10*024*07 |
FAQ:
Q1: Are you trading company or manufacturer?
A:We are factory, we have manufacturing experience for rubber products more then 20 years.
Q2: Can I get some samples?
A: Yes, Sample order is available for quality check and market test .But you have to pay the express cost.
Q3: What’s delivery time?
A: It usually takes about 1-2 working days for small order and 10-15 days for big order.
Q4: Can I mix different power in one container?
A: Yes ,Different models can be mixed up in one container,even one order.
Q5: If I only know the excavator model, but can not offer parts No., what should I do ?
A. If possible, you can send us pictures of old products, nameplate or the size for reference.
