Product Details:
|
| Size: | ID:111.1mm OD:150.5mm H:25mm | Type: | Labyrinth |
|---|---|---|---|
| Apply: | Dongfeng Truck | OEM No.: | 10045883 |
| Axle Model: | Conmet Axle | Application: | Industry, Excavator, Pump Hydraulic Machine Rotary Shaft, Bulldozer, Hydraulic Loader |
| Material: | NBR/HNBR/FKM/ACM | Color: | Brown Or Depends On Requiry |
| High Light: | Conmet Axle Rear Drive Oil Seal,Labyrinth Wheel Seal R Drive,FKM Rear Drive Oil Seal |
||
Product Name:

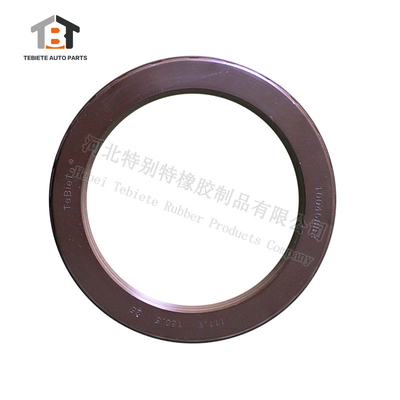

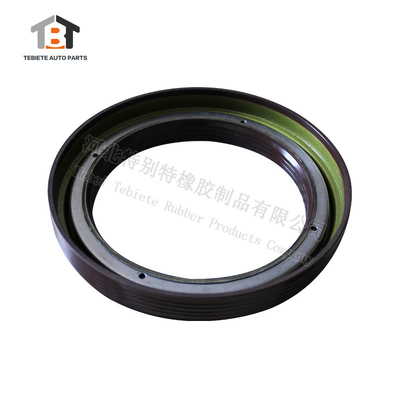

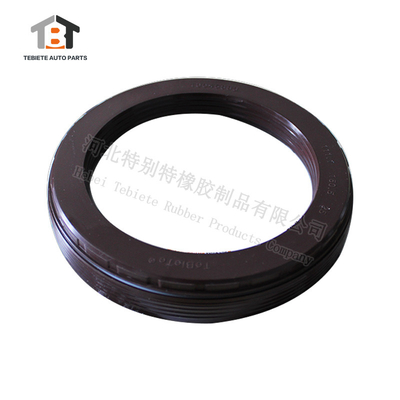

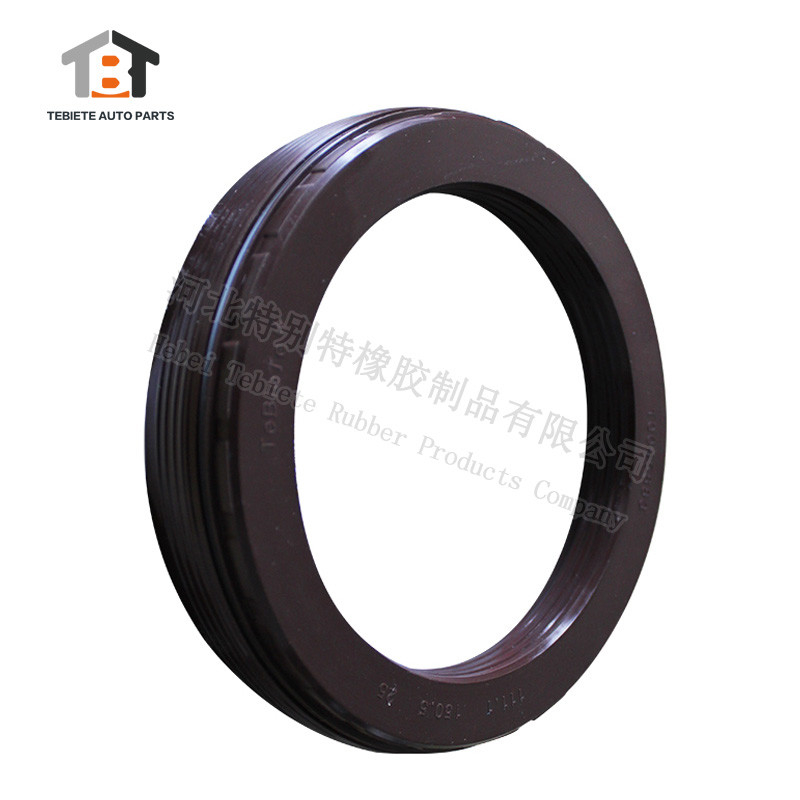

111.1x150.5x25 Truck Oil Seal for Conmet Front Wheel Hub
OEM No.10045883
Product Description:
| Product Name | Front Wheel Oil Seal |
| Size | 111.1x150.5x25 |
| Materials | NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE |
| OEM No. | 10045883 |
| Apply | Dongfeng Truck/ Conmet Axle |
| Temperature |
NBR(-40~120°C), FFKM(-20~320°C) Viton(-20~200°C), Silicone (-70~220°C) EPDM(-50~150°C), PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Hardness | 30-90 shores A |
| Color | Brown |
| Size | ID:111.1mm OD:150.5mm H:25mm |
| Oem No | 10045883 |
| Sample Time | If in stock, within 3 days after payment |
| Delivery Time |
10-20 days by shipping after final payment |
| Shipping | By Ships |
| Packing | Plastic bag&carton box or according to your requirements |
| Certification |
IATF 16949: 2016 ISO9001:2008 SGS Testing Report |
| Different Type of Truck Oil Seals | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
| Species |
Oil resistance |
Weather resistance |
Wear resistance |
The lowest Temperature |
The highest Temperature |
Features |
| FKM | optimal | optimal | optimal | -40 | 250 | It has excellent heat resistance, oil resistance and chemical resistance, and is the best balanced rubber for oil seal. |
| VMQ | good | optimal | good | -60 | 225 | It has excellent heat resistance, cold resistance and weather resistance. |
| ACM | optimal | optimal | optimal | -35 | 150 | The heat resistance is better than nitrile butadiene rubber, it has excellent oil resistance to internal combustion engine, gear oil, torque converter oil, etc. |
| AEM | good | optimal | optimal | -40 | 175 | It has good oil resistance and heat resistance, better than acrylic gum, slightly worse than silica gel, but good weather resistance. |
| HNBR | optimal | good | optimal | -40 | 150 | Heat resistance, oil resistance, better weather resistance than nitrile butadiene rubber. |
| NBR | optimal | good | optimal | -40 | 125 | Mineral oil, good wear resistance, widely used in oil seals. |
| EPDM | poor | optimal | good | -40 | 125 | Good water resistance, polar solvent resistance, inorganic drug resistance and weather resistance, but poor oil resistance. |
| PTFE | optimal | optimal | optimal | -65 | 260 | Oil seal material with the best heat resistance, water resistance, chemical resistance, weather resistance and low friction coefficient. |
FAQ:
Q1: Are you trading company or manufacturer?
A:We are factory, we have manufacturing experience for rubber products more then 20 years.
Q2:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q3: What’s delivery time?
A: It usually takes about 1-2 working days for small order and 10-15 days for big order.
Q4: Can I mix different power in one container?
A: Yes ,Different models can be mixed up in one container,even one order.
Q5: What is your payment term?
A:T/T,Paypal,Western Union and MoneyGram.This is negotiable.
