Product Details:
|
| Material: | NBR、FKM Or Customized | Type: | TC |
|---|---|---|---|
| Apply: | Agricultural Machinery | Warranty: | 12 Months |
| Application: | Industry, Excavator, Pump Hydraulic Machine Rotary Shaft, Bulldozer, Hydraulic Loader | Mold In Stock: | 5000 Items |
| High Light: | TC Type Agricultural Machinery Oil Seal,EPDM Cover Rubber Bearing Seal,40x65x12 Cover Rubber Bearing Seal |
||
Product Name:

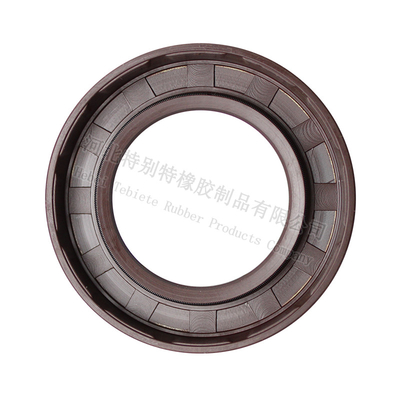

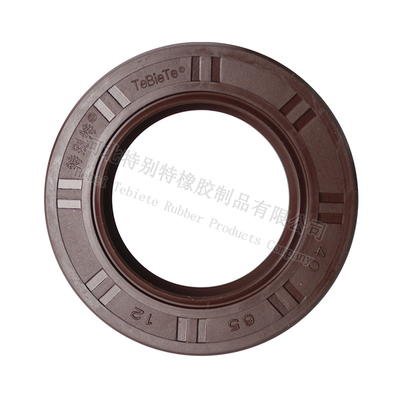

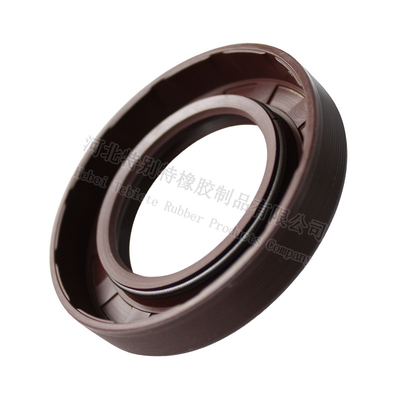

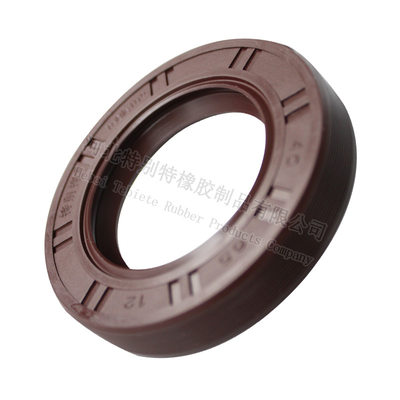

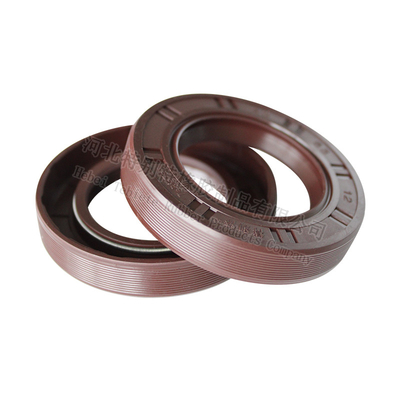

TC Type National Agricultural Machinery Oil Seal Oil Seal,Cover Rubber Bearing Seal
Product Description:
| Product Name | Rear Wheel Oil Seal |
| Size | 40x65x12 |
| Materials | NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE |
| OEM No. | Accept throurh drawing or samples |
| Apply | Agricultural Machinery |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Hardness | 30-90 shores A |
| Color | Brown,Black,White, blue, green,Clear,etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample Time | If in stock, within 3 days after payment |
| Delivery Time |
10-20 days by shipping after final payment |
| Shipping | By Ships |
| Customized | OEM & ODM are welcomed |
| Packing | Plastic bag&carton box or according to your requirements |
| Certification | IATF 16949: 2016, ISO9001:2008 |
Material feather :
| MATERIAL | TEMP | ADANTAGES | LIMITATION |
|
Nitrile Rubbrt (NBR) |
-40~125℃ |
■Good oil and fuel resistance ■High tensile strength ■Low swelling in water |
■Poor weather and ozine resistance ■Poor resistance against polar lkuids ■Poor resistance against clhydrocarbon ■Poor resistance against aromatic fluids |
|
Fluorinated Rubber (FKM) |
-20~250℃ |
■The resistance against oil and fuels is better than other types ■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons ■Exccllcent hcat resistance ■Exccllcent weather and ozonc resistance ■Exccllcent acid resistance ■Low swelling in water |
■Limited cold flexibliity ■Limited tensile and tear strength ■Limited wear resistance ■High compression set in hot water ■Poor resistance to polaric solvents |
|
Polyacrylate Rubber (ACM) |
-25~150℃ |
■Good oil and fuels resistance ■Good weater and ozone resistance |
■Not usable in contact with water and water solutions ■Limited cold flexibility ■Limited tensile strength and tear resistance ■Poor wear reisistance ■Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
Silicone Rubber (VQM) |
-60~225℃ | ■Best heat resistance of all rubber types ■Excellent low temp resistance of all rubber types ■Excellent weather and ozone resistance |
■Poor tensile and tear strength ■Poor wear resistance ■Sensitive to hydrolysis ■Poor resistance against aromatic oils and oxidized mineral oils ■Poor diffusion resistance |
| TYPE | SIZE | TYPE | SIZE | TYPE | SIZE |
| AXLE | 1.000*1.752*0.641 | AXLE | 3.875*5.690*0.927 | AXLE | 4.250*6.250*1.375 |
| AXLE | 1.063*2.000*0.615 | AXLE | 3.875*5.691*0.938 | AXLE | 4.250*6.254*1.250 |
| AXLE | 1.750*2.500*0.690/0.743 | AXLE | 3.875*5.696*0.875 | AXLE | 4.375*5.748*0.605 |
| AXLE | 2.225/2.375*3.125*0.6/0.7 | AXLE | 3.875*5.696*0.875 | AXLE | 4.375*5.751*0.945 |
| AXLE | 2.250*3.000*0.800 | AXLE | 3.938*5.505*0.750 | AXLE | 4.375*5.751*1.016 |
| AXLE | 2.250*3.251*0.689 | AXLE | 3.999*5.747*0.960 | AXLE | 4.375*5.763*0.930 |
| AXLE | 2.250*3.251*0.740 | AXLE | 4.000*5.126*1.047 | AXLE | 4.375*5.884*0.825 |
| AXLE | 2.500*3.500*0.500 | AXLE | 4.000*5.375*1.000 | AXLE | 4.375*5.905*1.000 |
| AXLE | 2.750*3.779*0.762 | AXLE | 4.000*5.625*0.605 | AXLE | 4.375*6.003*1.047 |
| AXLE | 2.875*3.625*0.472 | AXLE | 4.000*5.626*0.688 | AXLE | 4.375*6.251*0.605 |
| AXLE | 2.875*3.875*0.500 | AXLE | 4.000*5.626*0.700 | AXLE | 4.500*5.374*0.905 |
| AXLE | 3.437*4.755*0.642/0.720 | AXLE | 4.000*5.750*0.928 | AXLE | 4.500*5.750*0.960 |
| AXLE | 3.437*4.755*0.699 | AXLE | 4.000*5.750*1.068 | AXLE | 4.500*5.876*0.984 |
| AXLE | 3.438*4.757*0.700 | AXLE | 4.000*5.754*1.079 | AXLE | 4.625*5.999*0.840 |
| AXLE | 3.438*4.757*0.859 | AXLE | 4.000*5.757*0.866 | AXLE | 4.606*6.311*1.141 |
| AXLE | 3.500*4.547*0.900 | AXLE | 4.000*5.757*0.930 | AXLE | 4.625*6.001*0.912 |
| AXLE | 3.500*4.841*0.919 | AXLE | 4.000*5.757*0.930 | AXLE | 4.625*6.001*1.000 |
| AXLE | 3.500*4.842*0.903 | AXLE | 4.125*5.375*0.605 | AXLE | 4.625*6.006*0.846 |
| AXLE | 3.500*4.842*0.904 | AXLE | 4.250*6.000*0.637 | AXLE | 4.625*6.622*1.093 |
| AXLE | 3.500*4.842*0.925 | AXLE | 4.250*6.000*0.680 | AXLE | 4.750*6.250*0.813 |
| AXLE | 3.574*4.757*0.548 | AXLE | 4.250*6.000*0.750 | AXLE | 4.750*6.308*1.115 |
| AXLE | 3.625*4.810*0.921 | AXLE | 4.250*6.000*0.750 | AXLE | 4.765*6.251*0.605 |
| AXLE | 3.625*4.810*4.823*0.921 | AXLE | 4.250*6.000*0.766 | AXLE | 4.765*6.311*1.078 |
| AXLE | 3.875*5.126*0.605 | AXLE | 4.250*6.000*1.000 | AXLE | 4.766*6.001*1.063 |
| AXLE | 3.875*5.129*0.844 | AXLE | 4.250*6.008*1.142 | AXLE | 4.765*6.311*1.115 |
| AXLE | 3.875*5.376*0.905 | AXLE | 4.250*6.008*0.974 | AXLE | 4.766*6.311*1.125 |
| AXLE | 3.875*5.500*0.938 | AXLE | 4.250*6.048*0.680 | AXLE | 4.767*6.308*1.420 |
| AXLE | 3.875*5.685*0.685/0.920 | AXLE | 4.250*6.250*1.188 | AXLE | 4.875*5.999*0.625 |
| AXLE | 3.875*5.690*0.875 | AXLE | 4.250*6.250*1.300 | AXLE | 4.875*6.373*0.921 |
