Product Details:
|

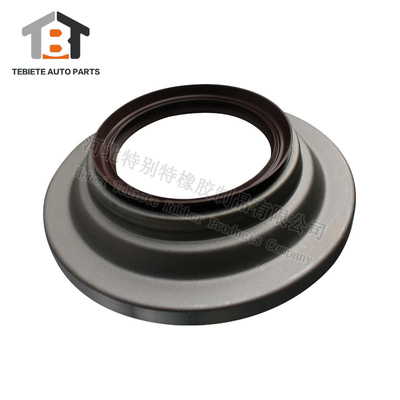

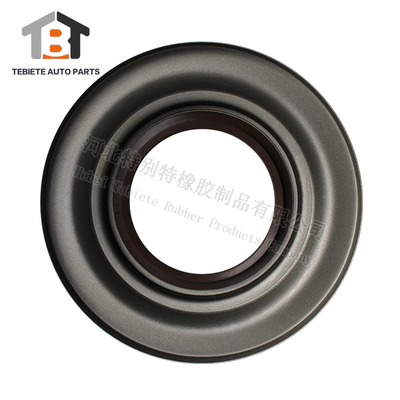

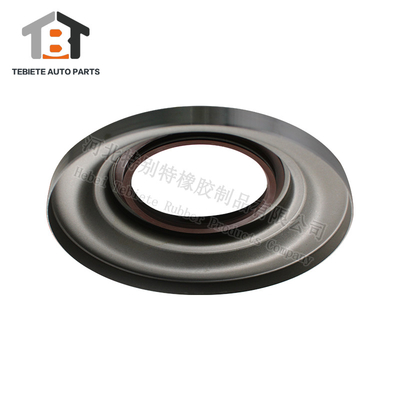

| Name: | Differential Oil Seal For JAC | Material: | FKM FPM VITON |
|---|---|---|---|
| Color: | Brown Or Black | Size: | 80*162*12.5/43mm |
| Standard Or Nonstandard: | Custom/Standard | Style: | Rubber Oil Seal |
| Package: | Plastic Bag+carton | ||
| High Light: | High Temperature JAC Differential Oil Seal,JAC 468 Differential Oil Seal,80*162*12.5/43mm Differential Oil Seal |
||
| Product Name | oil seal for differential |
| Truck Model | JAC |
| Size | 80*162*12.5/43mm |
| OEM | 1-09625-322-0,BH2088E,HTB29R |
| Materials | NBR |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Certification |
IATF16949:2016 ISO 9001:2008 SGS Quality Testing |
| Hardness | 70-90 shores A |
| Color | Red,Black,White, blue, green,Clear,etc |
| Sample Time |
If in stock, within 3 days after payment If have mold but no stock ,around 10-20days (Depends on order quantity) If need make new mold , aroud 20-40days (Depends on order quantity) |
| Delivery Time |
3-10days by shipping after final payment |
| Shipping | By Ships |
| Customized | OEM & ODM are welcomed |
| Packing | Plastic bag&carton box or according to your requirements |
| Certification | IATF 16949: 2016 |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
| MATERIAL | TEMP | ADANTAGES | LIMITATION |
|
Nitrile Rubbrt (NBR) |
-40~125℃ |
■Good oil and fuel resistance ■High tensile strength ■Low swelling in water |
■Poor weather and ozine resistance ■Poor resistance against polar lkuids ■Poor resistance against clhydrocarbon ■Poor resistance against aromatic fluids |
|
Fluorinated Rubber (FKM) |
-20~250℃ |
■The resistance against oil and fuels is better than other types ■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons ■Exccllcent hcat resistance ■Exccllcent weather and ozonc resistance ■Exccllcent acid resistance ■Low swelling in water |
■Limited cold flexibliity ■Limited tensile and tear strength ■Limited wear resistance ■High compression set in hot water ■Poor resistance to polaric solvents |
|
Polyacrylate Rubber (ACM) |
-25~150℃ |
■Good oil and fuels resistance ■Good weater and ozone resistance |
■Not usable in contact with water and water solutions ■Limited cold flexibility ■Limited tensile strength and tear resistance ■Poor wear reisistance ■Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
Silicone Rubber (VQM) |
-60~225℃ |
■Best heat resistance of all rubber types ■Excellent low temp resistance of all rubber types ■Excellent weather and ozone resistance |
■Poor tensile and tear strength ■Poor wear resistance ■Sensitive to hydrolysis ■Poor resistance against aromatic oils and oxidized mineral oils ■Poor diffusion resistance |
