Product Details:
|
| Name: | Truck Oil Seal | Material: | NBR Or Customized |
|---|---|---|---|
| Applition: | HINO Truck | Size: | 57x124x12/14 |
| Color: | Brown Or Customized | Package: | Inner Bag+outer Box |
| Heat Resistance: | -40℃-+300℃(depends On Material) | Hardness: | 60-90 Shore A |
| High Light: | Japanese Truck Hino Truck Oil Seal,57*124*12/14 Truck Oil Seal,Truck Oil Seal 57x124x12/14 |
||
Truck Oil Seal Name:

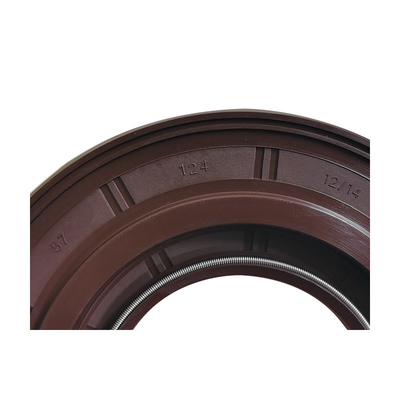

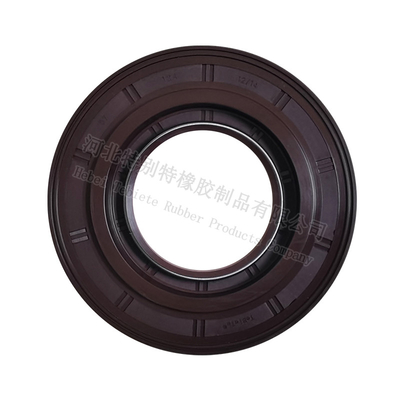

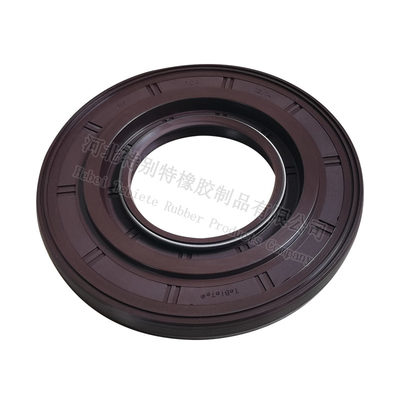

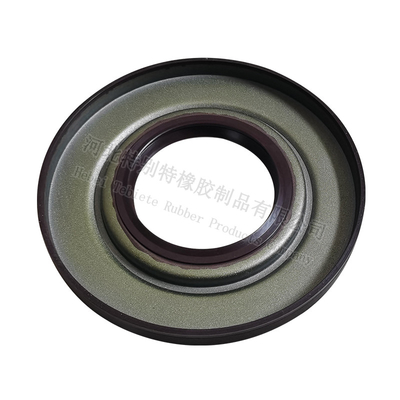

Truck Oil Seal 57x124x12/14 Shaft Sealing fits Japanese Truck Hino 57*124*12/14
Truck Oil Seal Description:
|
Product Name |
Truck Oil Seal |
|
Size |
57x124x12/14mm |
|
Applition |
Randon Trailer |
|
Materials |
NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE |
|
Temperature |
NBR(-40~120°C),FFKM(-20~320°C) |
|
Feature |
Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
|
Certification |
ISO 9001:2008 SGS Testing Report |
|
Hardness |
30-90 shores A |
|
Color |
Red,Black,White, blue, green,Clear,etc |
|
Sample Time |
If in stock, within 3 days after payment |
|
Delivery Time |
10-20 days by shipping after final payment |
|
Shipping |
By Ships/Air |
|
Customized |
OEM & ODM are welcomed |
|
Packing |
Plastic bag&carton box or according to your requirements |
Truck Oil Seal Material:
| Type | Code No | Feature | Use | |
| Common single lip | B | It is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s. | |
| Normal double lips |
FB
|
In addition to the use characteristics of the S type oil seal, it can also be dustproof. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
In the case of MPA, the linear velocity is less than 15m/s. |
|
| No spring type | BV | Spring-less single lip type inner-wrapped skeleton rubber oil seal. | Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s. | |
| Outer skeleton unillipped | W | Single lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity. | Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s. | |
| Exoskeleton bilabial | FW | The double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality. |
Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05
MPA occasions. The speed of 15 m/s or less. |
|
| Assembled single lip | Z | The outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load. | Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. | |
| Assembled double lip | FZ | The assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load. | Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s. | |
| Unidirectional reflux type |
Right-handed SR,
Left-handed DL |
The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained. | It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s. | |
| Compression type | NY | Lips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa. | Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s. | |
| Species |
Oil resistance |
Weather resistance |
Wear resistance |
The lowest Temperature |
The highest Temperature |
Features |
| FKM | optimal | optimal | optimal | -40 | 250 | It has excellent heat resistance, oil resistance and chemical resistance, and is the best balanced rubber for oil seal. |
| VMQ | good | optimal | good | -60 | 225 | It has excellent heat resistance, cold resistance and weather resistance. |
| ACM | optimal | optimal | optimal | -35 | 150 | The heat resistance is better than nitrile butadiene rubber, it has excellent oil resistance to internal combustion engine, gear oil, torque converter oil, etc. |
| AEM | good | optimal | optimal | -40 | 175 | It has good oil resistance and heat resistance, better than acrylic gum, slightly worse than silica gel, but good weather resistance. |
| HNBR | optimal | good | optimal | -40 | 150 | Heat resistance, oil resistance, better weather resistance than nitrile butadiene rubber. |
| NBR | optimal | good | optimal | -40 | 125 | Mineral oil, good wear resistance, widely used in oil seals. |
| EPDM | poor | optimal | good | -40 | 125 | Good water resistance, polar solvent resistance, inorganic drug resistance and weather resistance, but poor oil resistance. |
| PTFE | optimal | optimal | optimal | -65 | 260 | Oil seal material with the best heat resistance, water resistance, chemical resistance, weather resistance and low friction coefficient. |
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are a specialized manufacturer.
Q2: How about discount?
A2: Price is based on product model and quantity.
Q3: How about your after-sales service?
A3: As a manufacturer, we offer promote technology support for all problems and questions.
Q4: Where is your factory located in?
A4: Our factory is located in the automobile rubber production base - Julu Economic Development Zone, Hebei Province
Q5: How does your company control the quality?
A5: Quality first. In order to guarantee high quality for our products, TY always makes a serious inspection for all products and raw materials in strict procedure.
Q6:How to order the products?
A6:Just send us the inquiry with detail item desciption or with Model number.
Q7:What is your terms of delivery?
A7:We accept EXW,FOB,CIF etc.you can choose one which is more convenient.
Q8:do you provide samples?
A8:Yes,we do,But considering the operating cost, you need to pay the shipping cost.
