Product Details:
|
| Standard Or Nonstandard: | Standard, Nostandard | Application: | Machine, Valves, Engine, Shaft, Cylinder |
|---|---|---|---|
| Material: | NBR+PTFE 、 , Rubber, Steel,FKM,FPM | Color: | Brown, Black,Blue,Green Or Depends On Requirments |
| Type: | TC TB SB SC TA, Rubber Oil Seal, TC TB TCV TCN DC DB PTFE, Mold Compression, TC/TB/TA/SC/SB/SA Etc | Temperature: | Resistance To High And Low Temperatures Up To -40℃to +300℃ |
| High Light: | 140*167*12mm Rear Wheel Oil Seal,JAC Rear Wheel Oil Seal,140*167*12mm o ring oil seal |
||

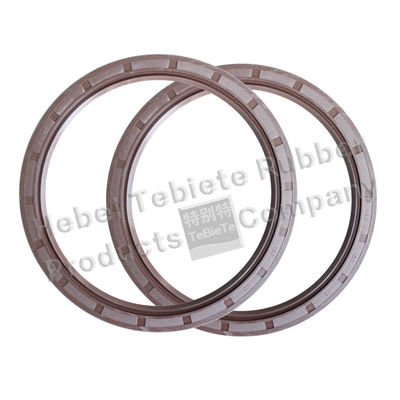

Product Name:Rear Wheel Oil Seal 140*167*12 for JAC TC type, high quality NBR material
The characteristics :
Oil seal edge, elastomer
The sealing lip short and soft with spring
With dustproof lip
Resistance to pressure oil seal, of a whole in the larger diameter used under high pressure
Used for sealing pressure situations
Oil seal application:
The engine
The wheel hub
The gear
construction machinery industry, injection molding machine industry, metallurgical industry, the press industry, engine
Technical Data:
| Brand | TEBIETE/ Customized | Type | Babsl | Material | NBR |
| The mechanical | Seal of the action | Shaft seal | rear wheel oil seal | Model | 140*167*12mm |
| Whether the samples or spot | Spot | Applicable | hub wheel | Goods are standard | Parts are imported |
| The characteristics | Wear resistance, high pressure | Advantages | High temperature resistance | Oil resistance |
Oil seal type:
TC, TB, SC, SB, TB5SY, VC, VB,VK ,TA, SA ,SAY,SCNY2,SCOT,SCOTPLUS
TCV, TCN, TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3,
TC4, TB4, DC, DB,DCY, HSCL,HTC ,HTC9L,HTGL,KC, VR, MG, CNB, SCJY, SCY, VK
Product characteristics:
1. Speed = >Mechanical movement speed is high, the lubrication oil film may be destroyed, because of not good lubrication and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good
2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃ ~ + 80 ℃ temperature range.
3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5 MPa.
4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load
ATTENTIONl:
If you are looking for a company to help you building your own brand of seals , seal kits , o-ring kits , or any other OEM services for other products . You have found the right one . Our company provides professional OEM services on seals seal kits , o-ring kits and other products . For details ,
please contact us . We will reply you as soon as possible .
Product categories:
| OIL-SEALS | |||
| Piston seal | SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH | Wiper Seal | DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY |
| Rod Seal | IDI IUH ISI IUIS SPNO IUY | Wearing Ring | WR KZT RYT |
| U Seal | UPI UPH USH USI UNI V99F V96H | Rotary Seal | ROI SPN CSI VAY |
| Buff Seal | HBTS HBY HBTTS | Back Up Ring | N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3 |
| CENTER JIONT KIT | GEAR PUMP SEAL KIT | O Ring | Oring Kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9series M 2.4 series M 3.0 series M4.0 series |
FAQ:
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can you provide sample for me?
-Yes,we can provide samples for you ,but you may need to pay some charge accordingly.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Paypal,Western Union and MoneyGram.This is negotiable.
5.What is the shipping method??
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
