OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm

Certification
China Hebei Te Bie Te Rubber Product Co., Ltd. certification
China Hebei Te Bie Te Rubber Product Co., Ltd. certification
Customer Reviews
Please send our regards to Mr. Li and make sure with him that our cooperation will be long term. Also I will be in Dubai Exhibition to visit you and make a new order. Hoping to be good start of our cooperation " Long Term".

—— B.P. From Egypt

It's a great time to work with Amy and I think we both have a great time! She is great at communication and solves my problems in time. I believe that I will cooperate with Tebiete Rubber Prouducts Company for a long time.

—— Mr. Mohammed From Turkey

I've been ordering oil seals in TBT for 2 years. The first time we met was in Germany and I love the color and quality of your oil seal. The price is okay for me also I think the quality is really high. It's hard to find a company who has both integrity and quality.

—— Mr. Robert From America

I'm Online Chat Now

OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm

OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm
OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm
OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm

Large Image :  OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm

Product Details:
Place of Origin: China
Brand Name: TE BIE TE/ customized
Certification: IATF 16949: 2016 , ISO 9001:2008
Model Number: 185x210x22 185*210*22
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Packaging Details: Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Delivery Time: 5-30days(depends on order quantity)
Payment Terms: T/T
Supply Ability: 10000pcs /day

OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm

Description
Material: Steel+NBR, Standard Or Nonstandard: Standard, Standard & Custom
Tpye: TC TB SB SC TA, Rubber Oil Seal, TC TB TCV TCN DC DB PTFE, Mold Compression, TC/TB/TA/SC/SB/SA Etc Feature: Oil Resistance, Corrosion Proof, Sealing Performance, Factory And Home, Heat-Resisitant
Use For: Hande Axle Oem: DZ90129340063
High Light:

DZ90129340063 Hub Oil Seal

,

185x210x22mm Hub Oil Seal

,

DZ90129340063 wheel hub oil seal

Product Name:

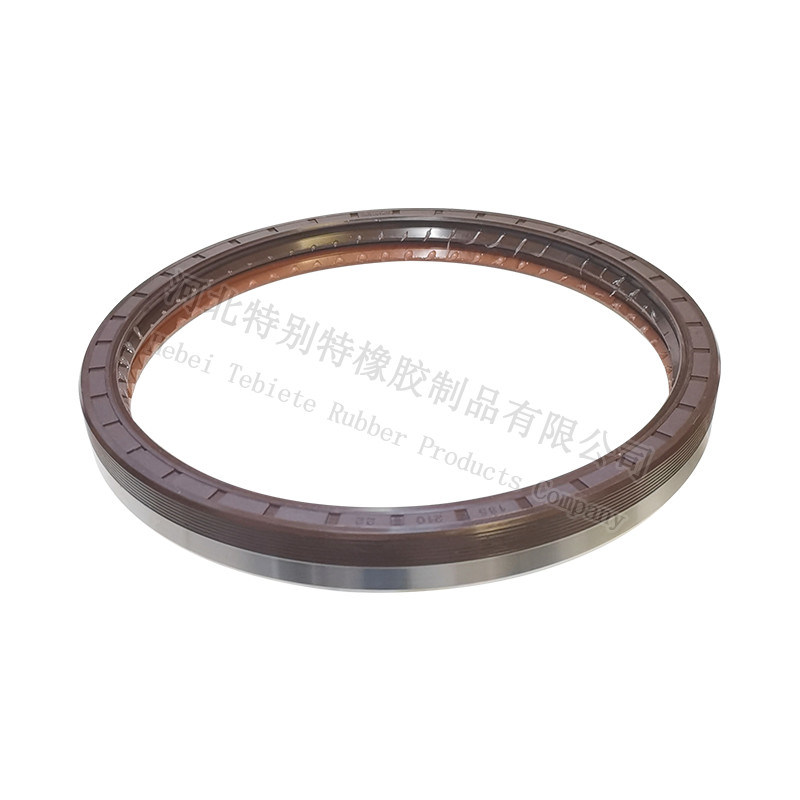

Rear Wheel Hub Oil Seal for Hande Axle 185x210x22mm Half Rubber Type



OEM:DZ90129340063



Material:NBR+



Technical Data:





Brand

Tebiete Type

 Half  Rubber Type

Material NBR
Model 185*210*22mm Installation position Differential oil seal Apply to Hande Axle
Hardress shore A 70-80 Temperature resistance -40℃-300℃ Standard non-standard
ID 185mm OD 210mm Height 22mm



Oil seal type:
TC, TB, SC, SB, TB5SY, VC, VB,VK ,TA, SA ,SAY,SCNY2,SCOT,SCOTPLUS
TCV, TCN, TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3,
TC4, TB4, DC, DB,DCY, HSCL,HTC ,HTC9L,HTGL,KC, VR, MG, CNB, SCJY, SCY, VK

Type Code No Feature Use
Common single lip B It is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion. Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s.
Normal double lips

FB



In addition to the use characteristics of the S type oil seal, it can also be dustproof.

Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05



In the case of MPA, the linear velocity is less than 15m/s.

No spring type BV Spring-less single lip type inner-wrapped skeleton rubber oil seal. Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s.
Outer skeleton unillipped W Single lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity. Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s.
Exoskeleton bilabial FW The double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality.

Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05



MPA occasions. The speed of 15 m/s or less.

7/5000

Assembled single lip

Z The outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load. Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
Assembled double lip FZ The assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load. Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
Unidirectional reflux type

Right-handed SR,



Left-handed DL

The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained. It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s.
Compression type NY Lips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa. Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s.



Factory Descripition:

We have passed the IATF16949 quality management certification and have qualified environmental inspection procedures and equipment

Service Advantage:

---We have a team for overseas market. In this team, we will follow customers needs about the products and make sure customers are satisfied with products.Also, we will try our best to solve problems for customers and give them the best solutions.

Technology Advantage:

--- Introducing high-tech production line of automated production lines and specializing in the development and production of various rubber products, we also invite rubber experts to research new technology, new formula of "drive belt" and "oil seal" and other rubber products to make our products anti-aging, wear-resistant and advanced level of resistance to high and low temperatures.

Team Advantage:

---In Tebiete, teamwork is critical from production, sales to services. Small teams in each department will gather strength to drive the development of the entire company.

Our faith:

We firmly believe that good cars come from good accessories, good accessories come from Tebiete rubber. Tebiete only produce durable products. We believe that in the near future, we are the most specialized, deepest and largest enterprise in the auto parts industry in China.

.OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm 0          OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm 1



Cooperative manufacturer:

Wuxi Xilian New Energy Power Co., Ltd.
Dongfeng Nanchong Manufacturing Plant

OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm 2  OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm 3

OEM DZ90129340063 Rear Wheel Hub Oil Seal For Hande Axle 185x210x22mm 4



FAQ:

1:Why more and more customers choose your factory?

a. We are specialized in the manufacturing and exporting of high quality seals. Choose us is to choose the rest assured.

b. We mainly produces various types, specifications, models of the seals of high precision mechanical components. We have all the specifications of what you need to help you achieve one-stop shopping, save time, effort and worry.

c. We has long been a domestic and international numerous oil seal mould supply business of manufacturer, service for 15 years, we have professional talents and product research and development equipment, our research and development ability, is the domestic first-class oil seal manufacturer home.

d. We provide one-stop sealing solutions, and provide a full range of services, from product design, mold development, stamping skeleton, vulcanization molding, clip, screening and packaging,. The entire process would take a shorter, more stable quality.

2: What is your packing?

a. Inner plastic bag+outer carton box, 1or 2 piece in one box.

b. 40-200 boxes / out box.

c. According to customer's request.

d. we provide our own logo packing or can print customer's logo packing.

the installation direction requirements

3. Production :

We can produce by the size and pics.

If you want the customized products, send the samples to us.

4. Delivery time:

a. Have mould and stock: 5 days,

b. Have mould but No stock:7-40days (depends on order quantity),

c. No mould and No stock:15-50days (depends on order quantity).

5. Samples:

We can provide samples but the delivery fee is paid by the customer.
