Product Details:
|
| SIZE: | Packaging And Warehouse | APPLICATION: | HOWO TRUCK |
|---|---|---|---|
| Mould In Stock: | 900 Pcs | Rubber Origin: | TAIWAN |
| Warrenty: | 1 Year | ||
| High Light: | 95.25x114.5x8 Maintenance Free Oil Seal,Shannxi FAST gearbox seals,C01032+19109 gearbox seals |
||
| Different Type of Oil Seals | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
Product Name:

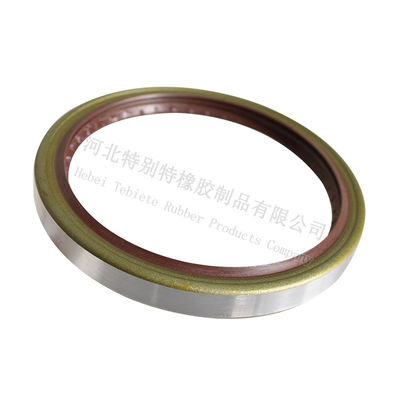

95.25x114.5x8 95.25x114.5x12 Gearbox Oil Seals for Shannxi FAST C01032+19109
Oil Seal Stucture:
|
Product Name |
Gearbox Oil Seal |
|
Size |
95.25x114.5x8mm 95.25x114.5x12mm 2pcs / set |
|
Truck Model
|
Shannxi FAST Gearbox |
|
Material |
NBR or Depends on inquire |
|
Color |
Brown or Depends on inquire |
|
Temperature Resistant |
-40℃——+260℃ |
|
Quality Certification
|
IATF16949:2016 & ISO9001:2008 |
|
MOQ |
1 pcs can be accept if have stock 50pc can be accept if have mold without stock 500-1000pcs if don't have mold
|
|
Customized
|
OEM & ODM are welcome |
|
Package |
Inner plastic bag + Outer carton box |
Performance of Raw Material:
| NBR |
Excellent resistant to oil, Low temperature resistant,widely used in industrial area
|
| EPDM |
Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical
|
| NR |
High elasticity, good chemical strength
|
| CR |
Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range
|
| SBR |
Shock resistance,performance well in adhesion and sealing
|
| SILICONE |
Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area
|
| VT/FKM |
Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent
|
| HNBR |
Thermal stability and oxidation resistance
|
| IIR |
Low permeability rate and good electrical properties
|
Typical Applications
Primarily for applications with no pressure or very low pressure up to 7psi (0.5bar) spikes*
General purpose seal for oil and grease retention for power transmission, motors, pumps, gear boxes, fans, machine tools and others.
Operating Range:
Maximum Pressure: 3psi (0.2bar) continuous, 7psi (0.5bar)* max. pressure spikes depending on shaft speed
Temperature: -58 to 400°F (-50 to 200°C) depending on seal material
Shaft Surface Speed: Up to 7,000 fpm (35m/s)* depending on shaft diameter and seal material
Materials: NBR (Nitrile), FKM, ®, HNBR, EPDM, low temperature and low-friction material grades.
Different Type of Oil Seals
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
Oil Seal Main Types:
Oil Seal Used In Engine: DR, DL, TG, TGW, TC etc.
Oil Seal Used In Wheel: TC, TB, SB, SC, TA, SA, TG, SG, TGW, combined type and so on.
Oil Seal Used In Electric tool: TC, TB, SB etc.
Oil Seal Used In Agricultural vehicle: Special type as customers' reuqirement
Oil Seal Used In Construction Machinery: SIBC, TZDL, TA, TC etc.
FAQ:
Q : When can I get the price?
A : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us by E-mail,so that we will regard your inquiry as the first priority.
Q : How can I get a sample to check your quality?
A :After price confirmation, you can require for samples to check our quality.
Q : Can you do the design for us?
A :Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.
Q : How long can I expect to get the sample?
A :It will be ready for delivery in 7-10 days. The samples will be sent to you via express and arrive in 3-5 days.
Q : What about the lead time for mass production?
A :Usually 30-45 days after you confirm the PP sample and we received your deposit.
