Product Details:
|

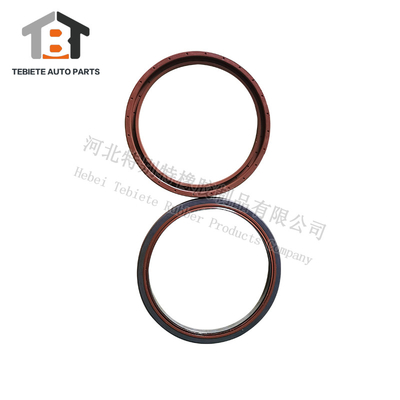

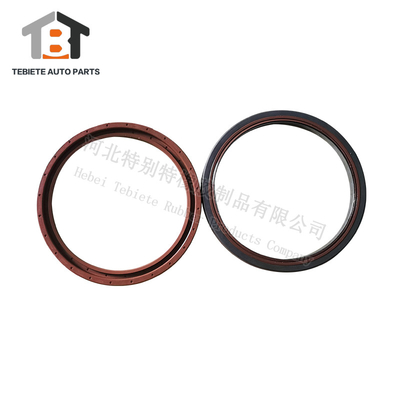

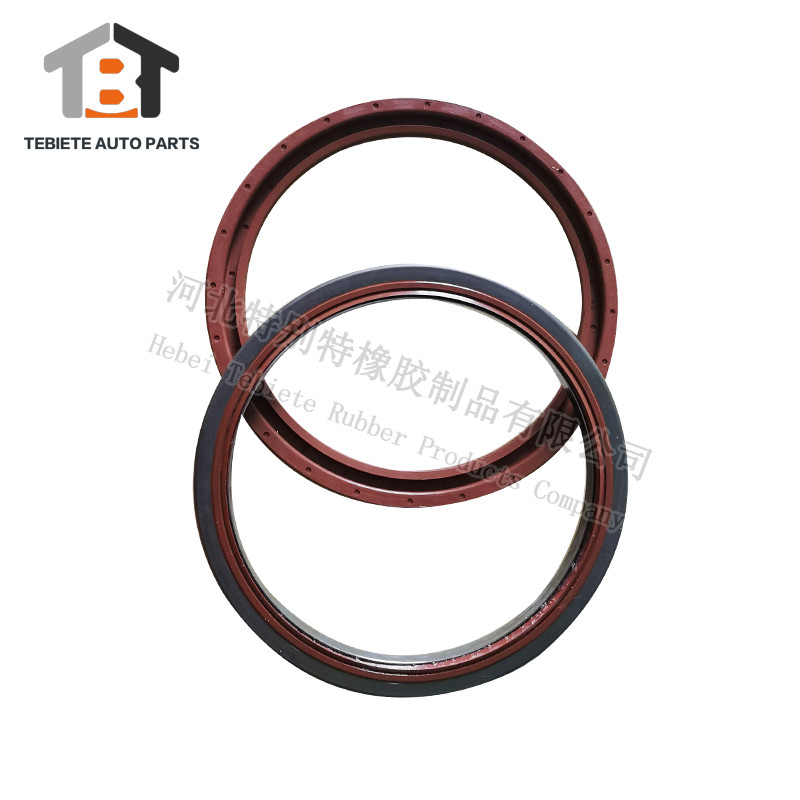

| Name: | Repair Kits For MAN | Material: | NBR/FKM /Iron |
|---|---|---|---|
| Color: | Brown Or Black | Size: | 131*156*9.5mm + 131*157*8mm |
| Standard Or Nonstandard: | Custom/Standard | Style: | Rubber Oil Seal |
| Package: | Plastic Bag+carton | Application: | COMBI Oil Seal |
| High Light: | Trailer Wheel Oil Seal For MAN,131 X 157 X 8 Trailer Oil Seal,FKM Iron Trailer Oil Seal |
||
| Product name | oil seal repair kits |
| Material | iron / nbr/fkm |
| color | black red blue brown or customes request |
| Size | 131*156*9.5 131*157*8 mm |
| Hardness | 20-90shore A or as your requirements |
| Certificate | IATF16949:2016 ISO9001:2008 Environmental qualification certification |
| Application | Oil Prevention Sealing;Water Prevention Sealing;Corrosion Prevention Sealing;Gas Prevention Sealing;Leak Prevention Sealing |
| Port of loading | Tianjin/ Qingdao/Ningbo/Shanghai |
| Term of payment | PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc. |
| Packing | Neutral packing or meeting customer's need |
| NBR | Excellent resistant to oil, Low temperature resistant,widely used in industrial area |
| EPDM | Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical |
| NR | High elasticity, good chemical strength |
| CR | Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range |
| SBR | Shock resistance,performance well in adhesion and sealing |
| SILICONE | Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area |
| VT/FKM | Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent |
| HNBR | Thermal stability and oxidation resistance |
| IIR | Low permeability rate and good electrical properties |
(1) Recommended oil seal installation tools and methods
1. The installation of the oil seal can be flush with the front end of the casing aperture, or it can be close to the low section of the casing aperture.
2. The reference planes for installation and positioning should be machined surfaces, and the unprocessed reference planes cannot be used.
3. The outer diameter of the oil seal should be coated with a layer of lubricant.
4, using hydraulic or pneumatic uniform pressure compression oil seal.
Note:
The matching surface of the oil package is flush with the reference surface of the housing to ensure the verticality of the shaft and the center of
the shaft after the shaft is installed, so that the oil seal lip becomes a line contact belt on the shaft surface to achieve a good sealing effect.
(2) Installation without oil seal
1.Apply a layer of suitable lubricant when the outer diameter of the oil seal is assembled
2. Tap the oil seal firmly and evenly.
3. Check that the oil package is flush with the reference surface of the casing after it is inserted.
Check that the oil seal spring must not come off.
Q1: How long is your delivery time?
A: 3-5days after payment received(public holiday excluded).
Q2: How to make payment?
A: We accept multiple payment method like Bank Transfer, Western Union, Money Gram, Credit Card, Paypal ,L/C and so on.
Q3:Who will pay importing duties?
A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their
country. If our customer has special requirement for the declared value, you can tell us.
Q4:How about your product quality control?
A:We produce strictly according to the standard production process : qualified material--vulcanization--trimming-second vulcanization--quality
inspection.
Q5: What is your advantages?
A:Our products offers excellent quality, reasonable price, good after-sales service & quality assurance.
