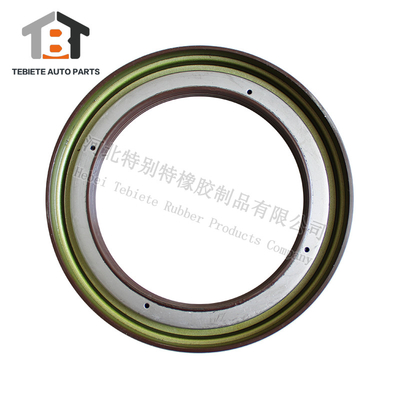

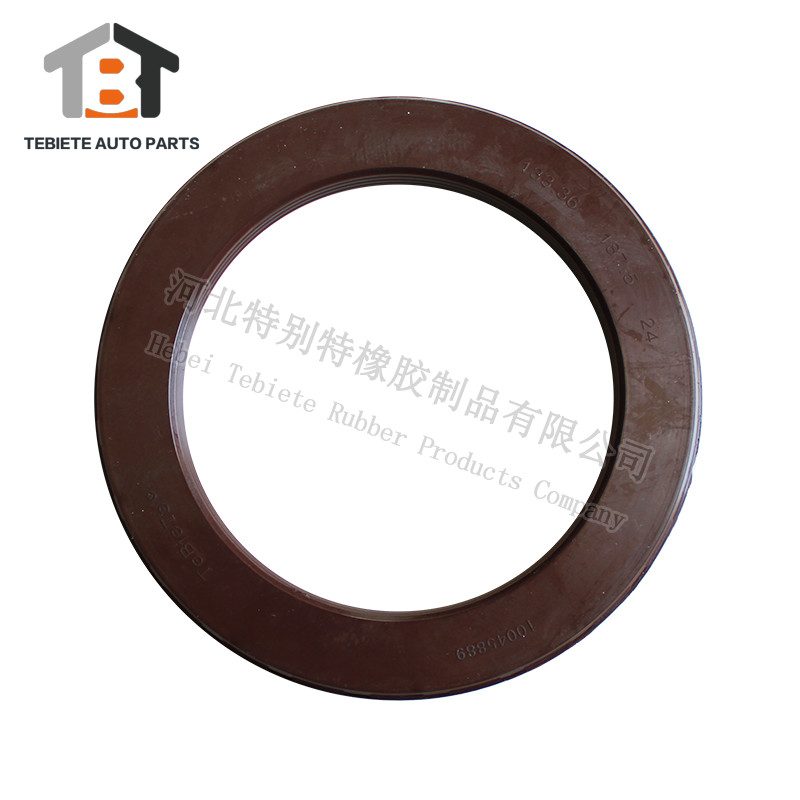

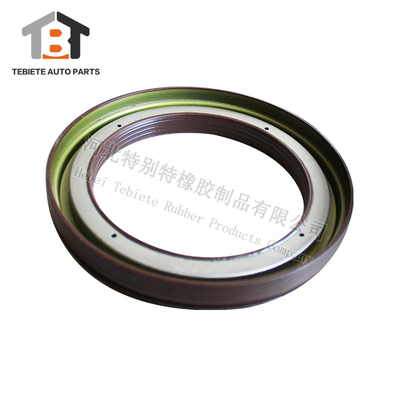

Product Details:
|
| Name: | Rotery Oil Seal For VOLVO | Material: | NBR/FKM /Iron |
|---|---|---|---|
| Color: | Brown Or Black | Size: | 133.36*187.5*24mm |
| Standard Or Nonstandard: | Custom/Standard | Style: | Rubber Oil Seal |
| Package: | Plastic Bag+carton | Application: | CONMET Axle |
| High Light: | OEM 10045884 Trailer Oil Seal,Trailer Oil Seal For VOLVO,10045884 Trailer Oil Seal |
||
| Product name | oil seal |
| Material | iron / nbr/fkm |
| color | black red blue brown or customes request |
| Size | 133.36*187.5*24mm |
| Hardness | 20-90shore A or as your requirements |
| Certificate | IATF16949:2016 ISO9001:2008 Environmental qualification certification |
| Application | Oil Prevention Sealing;Water Prevention Sealing;Corrosion Prevention Sealing;Gas Prevention Sealing;Leak Prevention Sealing |
| Port of loading | Tianjin/ Qingdao/Ningbo/Shanghai |
| Term of payment | PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc. |
| Packing | Neutral packing or meeting customer's need |
Material Feather
Material feather 1
| NBR | Excellent resistant to oil, Low temperature resistant,widely used in industrial area |
| EPDM | Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical |
| NR | High elasticity, good chemical strength |
| CR | Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range |
| SBR | Shock resistance,performance well in adhesion and sealing |
| SILICONE | Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area |
| VT/FKM | Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent |
| HNBR | Thermal stability and oxidation resistance |
| IIR | Low permeability rate and good electrical properties |
| MATERIAL | TEMP | ADANTAGES | LIMITATION |
Nitrile Rubbrt (NBR) | -40~125℃ | ■Good oil and fuel resistance ■High tensile strength ■Low swelling in water | ■Poor weather and ozine resistance ■Poor resistance against polar lkuids ■Poor resistance against clhydrocarbon ■Poor resistance against aromatic fluids |
Fluorinated Rubber (FKM) | -20~250℃ | ■The resistance against oil and fuels is better than other types ■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons ■Exccllcent hcat resistance ■Exccllcent weather and ozonc resistance ■Exccllcent acid resistance ■Low swelling in water | ■Limited cold flexibliity ■Limited tensile and tear strength ■Limited wear resistance ■High compression set in hot water ■Poor resistance to polaric solvents |
Polyacrylate Rubber (ACM) | -25~150℃ | ■Good oil and fuels resistance ■Good weater and ozone resistance | ■Not usable in contact with water and water solutions ■Limited cold flexibility ■Limited tensile strength and tear resistance ■Poor wear reisistance ■Poor resistance against polar and aromatic and chlorinared hydrocarhons |
Silicone Rubber (VQM) | -60~225℃ | ■Best heat resistance of all rubber types ■Excellent low temp resistance of all rubber types ■Excellent weather and ozone resistance | ■Poor tensile and tear strength ■Poor wear resistance ■Sensitive to hydrolysis ■Poor resistance against aromatic oils and oxidized mineral oils ■Poor diffusion resistance |
1.The inner rotary oil seal is actually a kind of structure type of rotary seal, which is generally composed of moving ring and static ring.
2.It is the use of the structure of the shape of the arrangement, so that the path of oil leakage elongated, as if into the "maze", and leakage of oil,
because of the role of rotating centrifugal force, can return halfway and no longer leakage.
3.Due to less friction than the skeleton oil seal, and the higher the rotating speed, the better the sealing effect, it is often used in high-speed
rotating occasions.
Q1: How long is your delivery time?
A: 3-5days after payment received(public holiday excluded).
Q2: How to make payment?
A: We accept multiple payment method like Bank Transfer, Western Union, Money Gram, Credit Card, Paypal ,L/C and so on.
Q3:Who will pay importing duties?
A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their
country. If our customer has special requirement for the declared value, you can tell us.
Q4:How about your product quality control?
A:We produce strictly according to the standard production process : qualified material--vulcanization--trimming-second vulcanization--quality
inspection.
Q5: What is your advantages?
A:Our products offers excellent quality, reasonable price, good after-sales service & quality assurance.
